DS18 PRO-ZXI8M 8" Mid-Range Loudspeaker 700 Watts 8-Ohm
These speakers were designed specifically for the audio enthusiast that wants unparalleled volumes with amazing sound quality all while absorbing the power thrown at efficiently allowing it to play up to extreme volumes with authority for extended periods of time.

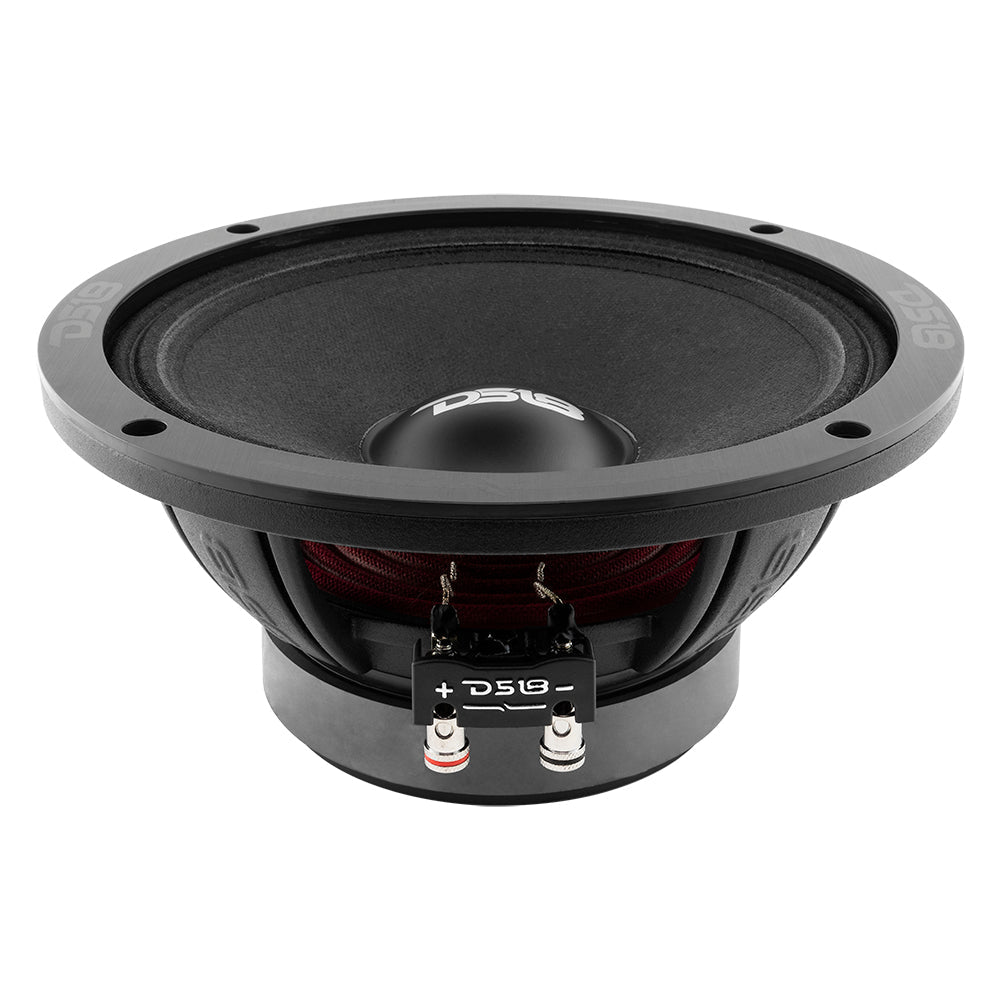

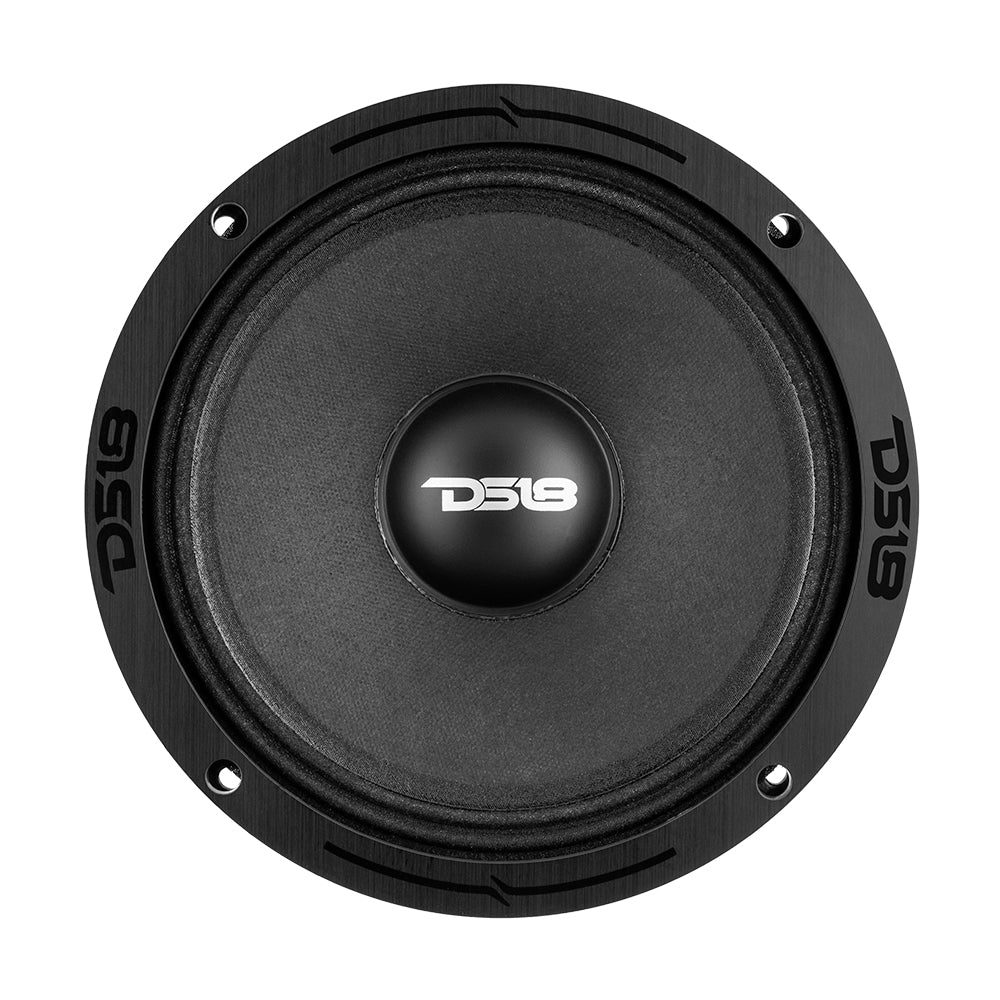

The PRO-ZXi8M has a beautiful black basket face with strong black dust cap.
This 8-ohm 8 inch speaker handles an enormous 350 watts RMS and 700 watts MAX power ensuring screaming loud mid and high range frequencies be acute and clear.
Key Features
- 8" Pro-Audio Loudspeaker
- Max Power Handling: 700 watts
- RMS Power Handling: 350 watts
- Frequency Response: 80Hz-8KHz
- Voice Coil Diameter: 1.5"
- Voice Coil Material: Glass Fiber
- Impedance: 8-Ohms
- Sensitivity: 99dB
- Magnet Weight: 30 Oz + 3 Oz
- Magnet Material: Ferrite + Neodymium
- Mounting Depth: 3.42"
Great for:
- Car Audio
- Pro Audio
- Motorcycles
- Home Studios
- Hi-Fi Installation
- Stunt Walls
- DIY Projects
Technical Details
PRO- ZXI8M Product Manual
| SPECIFICATIONS | |
| Nominal Diameter | 8" / 203.2mm |
| Nominal Impedance | 8 ohm |
| RMS Power Handling | 350W |
| MAX Power Handling | 700W |
| Sensitivity (1w/1m) | 99dB |
| Frequency Response | 80Hz - 8KHz |
| Recommended HI Pass Crossover | 125Hz |
| Pair or single | Single |
| MOTOR | |
| Voice Coil Diameter | 1.5" / 38.6mm |
| Voice Coil Former Material | Glass fiber |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dust Cap Material | Paper |
| Bullet Material | N/A |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Basket Color | Black Sandblasted |
| Magnet Material | Ferrite + Neodymium |
| Magnet Weight | 30 + 3 Oz |
| Displacement Volume | 0.63L / 0.022ft3 |
| MEASUREMENT | |

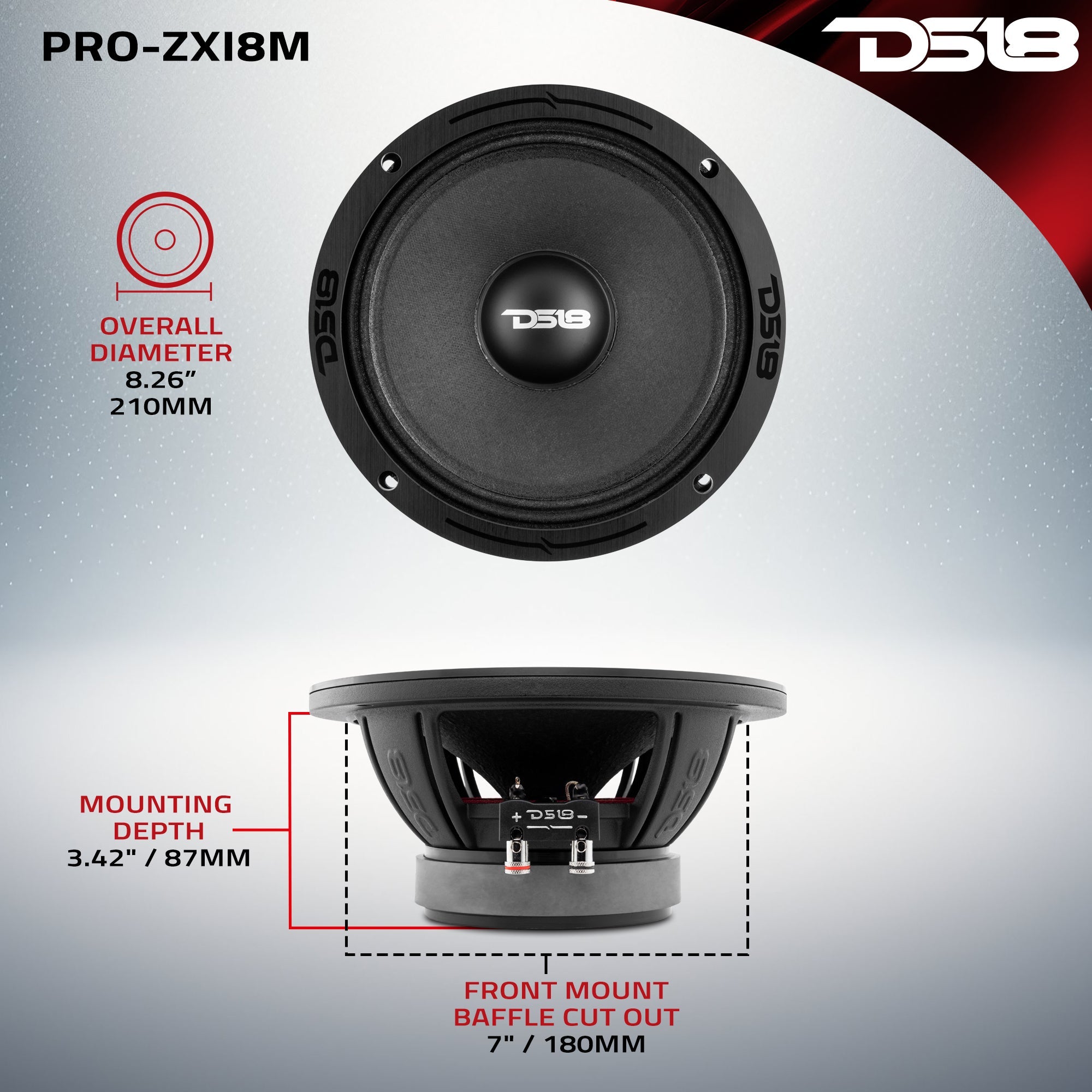

| Overall Diameter | 8.26" / 210mm |
| Overall Depth | 3.77" / 96mm |
| Front Mount Baffle Cutout | 7" / 180mm |
| Mounting Depth | 3.42" / 87mm |
| Motor Diameter | 4.72" / 120mm |
| Shipping | This item ships to |
| Delivery | Estimated between and . Will usually ship within 1 business day. |
Description
DS18 PRO-ZXI8M 8" Mid-Range Loudspeaker 700 Watts 8-Ohm
These speakers were designed specifically for the audio enthusiast that wants unparalleled volumes with amazing sound quality all while absorbing the power thrown at efficiently allowing it to play up to extreme volumes with authority for extended periods of time.
The PRO-ZXi8M has a beautiful black basket face with strong black dust cap.
This 8-ohm 8 inch speaker handles an enormous 350 watts RMS and 700 watts MAX power ensuring screaming loud mid and high range frequencies be acute and clear.
Key Features
- 8" Pro-Audio Loudspeaker
- Max Power Handling: 700 watts
- RMS Power Handling: 350 watts
- Frequency Response: 80Hz-8KHz
- Voice Coil Diameter: 1.5"
- Voice Coil Material: Glass Fiber
- Impedance: 8-Ohms
- Sensitivity: 99dB
- Magnet Weight: 30 Oz + 3 Oz
- Magnet Material: Ferrite + Neodymium
- Mounting Depth: 3.42"
Great for:
- Car Audio
- Pro Audio
- Motorcycles
- Home Studios
- Hi-Fi Installation
- Stunt Walls
- DIY Projects
Technical Details
PRO- ZXI8M Product Manual
| SPECIFICATIONS | |
| Nominal Diameter | 8" / 203.2mm |
| Nominal Impedance | 8 ohm |
| RMS Power Handling | 350W |
| MAX Power Handling | 700W |
| Sensitivity (1w/1m) | 99dB |
| Frequency Response | 80Hz - 8KHz |
| Recommended HI Pass Crossover | 125Hz |
| Pair or single | Single |
| MOTOR | |
| Voice Coil Diameter | 1.5" / 38.6mm |
| Voice Coil Former Material | Glass fiber |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dust Cap Material | Paper |
| Bullet Material | N/A |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Basket Color | Black Sandblasted |
| Magnet Material | Ferrite + Neodymium |
| Magnet Weight | 30 + 3 Oz |
| Displacement Volume | 0.63L / 0.022ft3 |
| MEASUREMENT | |
| Overall Diameter | 8.26" / 210mm |
| Overall Depth | 3.77" / 96mm |
| Front Mount Baffle Cutout | 7" / 180mm |
| Mounting Depth | 3.42" / 87mm |
| Motor Diameter | 4.72" / 120mm |
