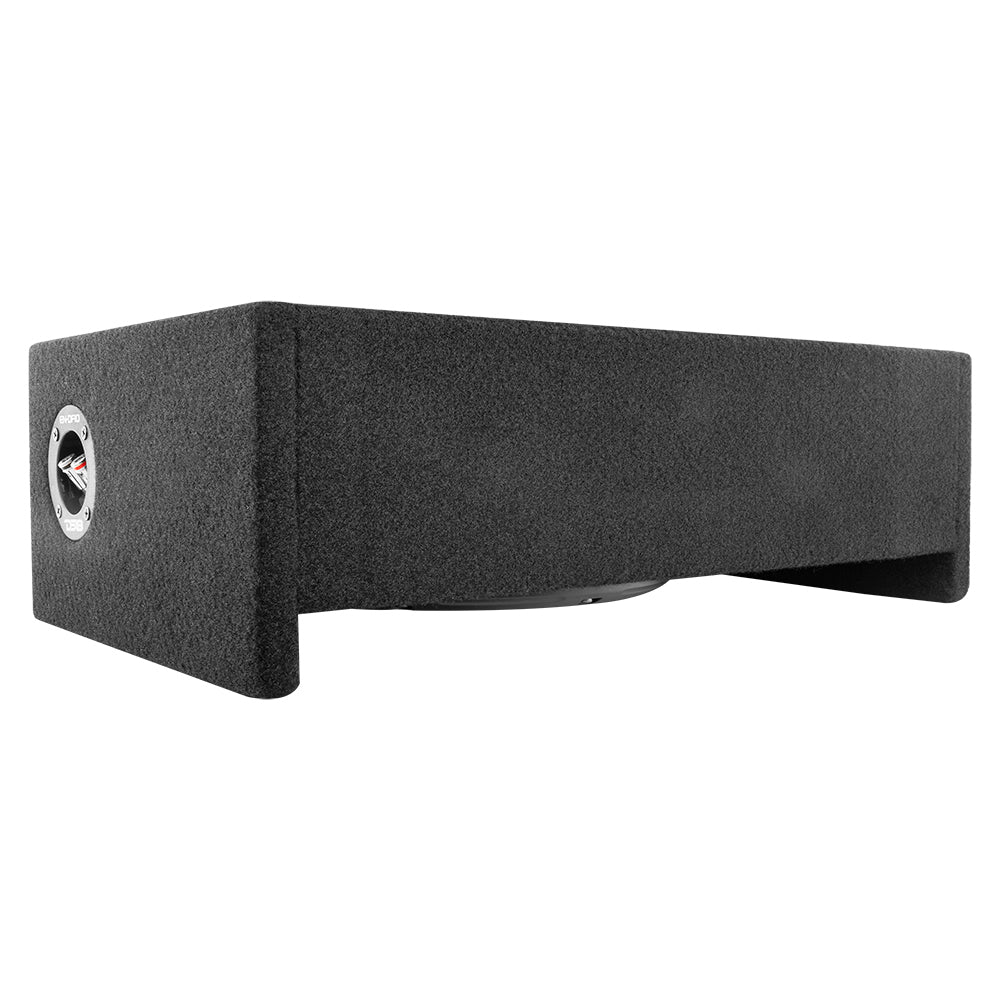

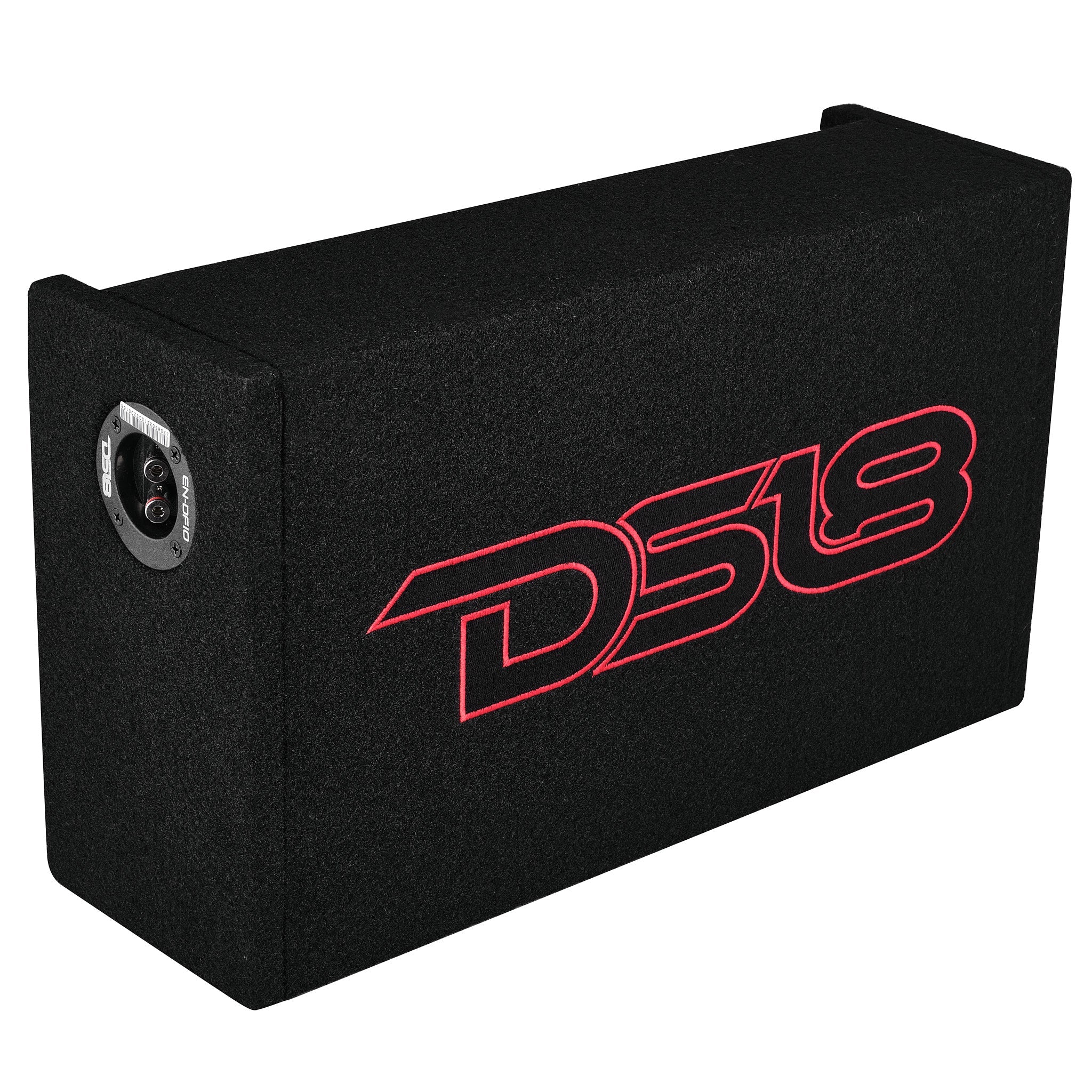

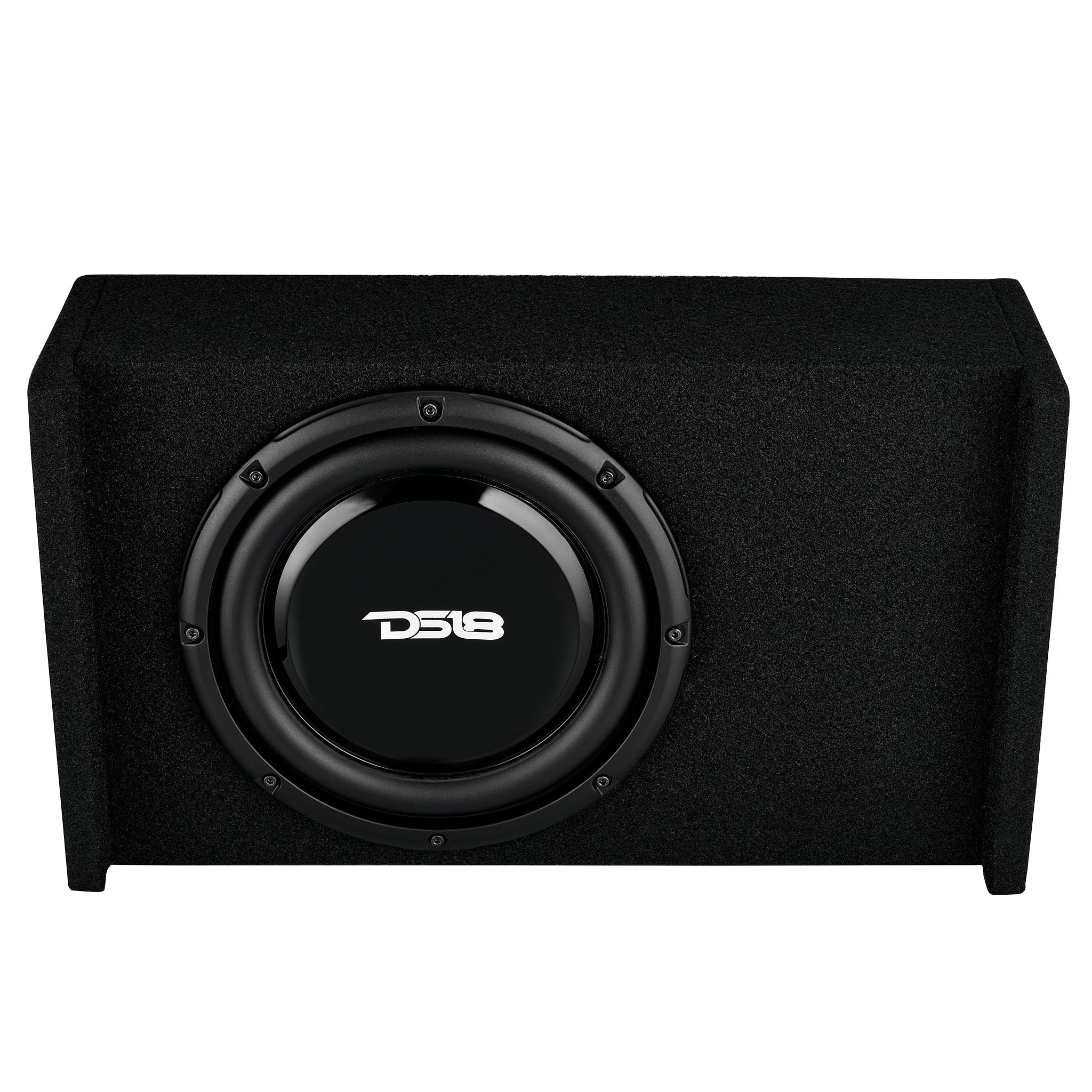

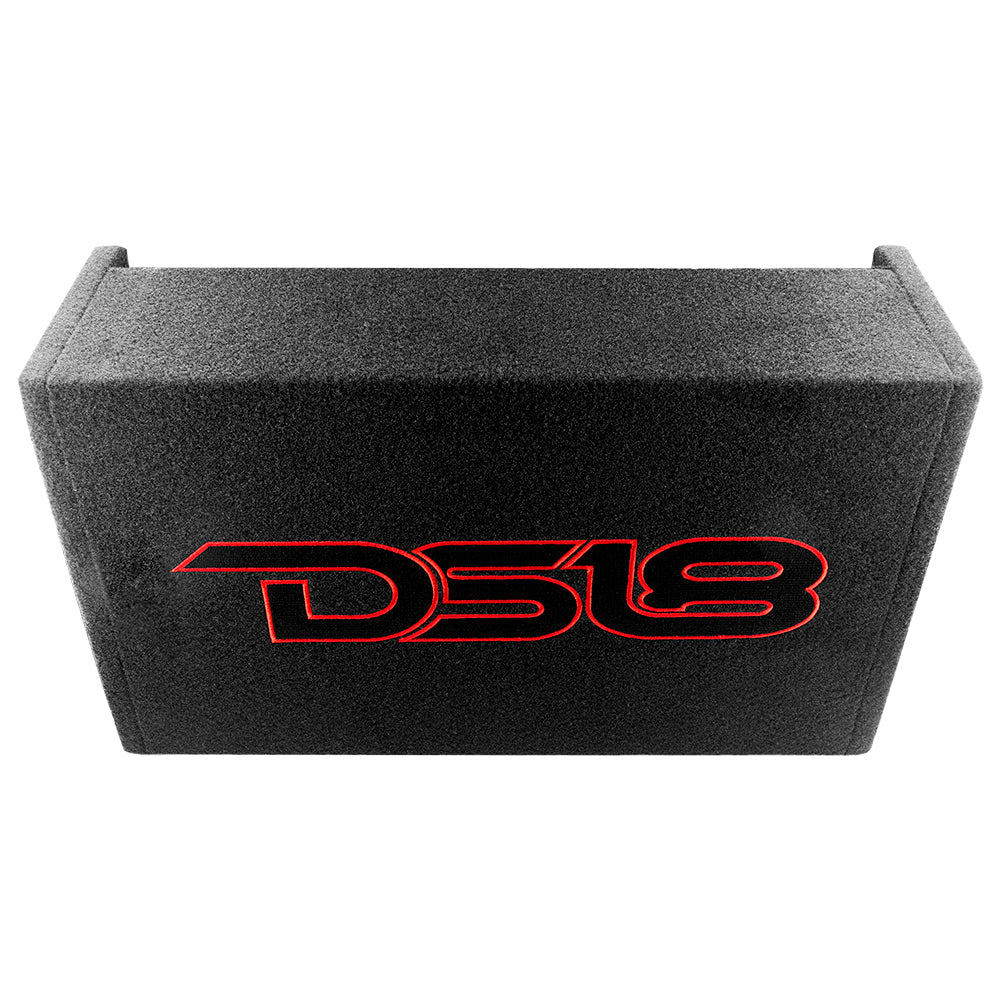

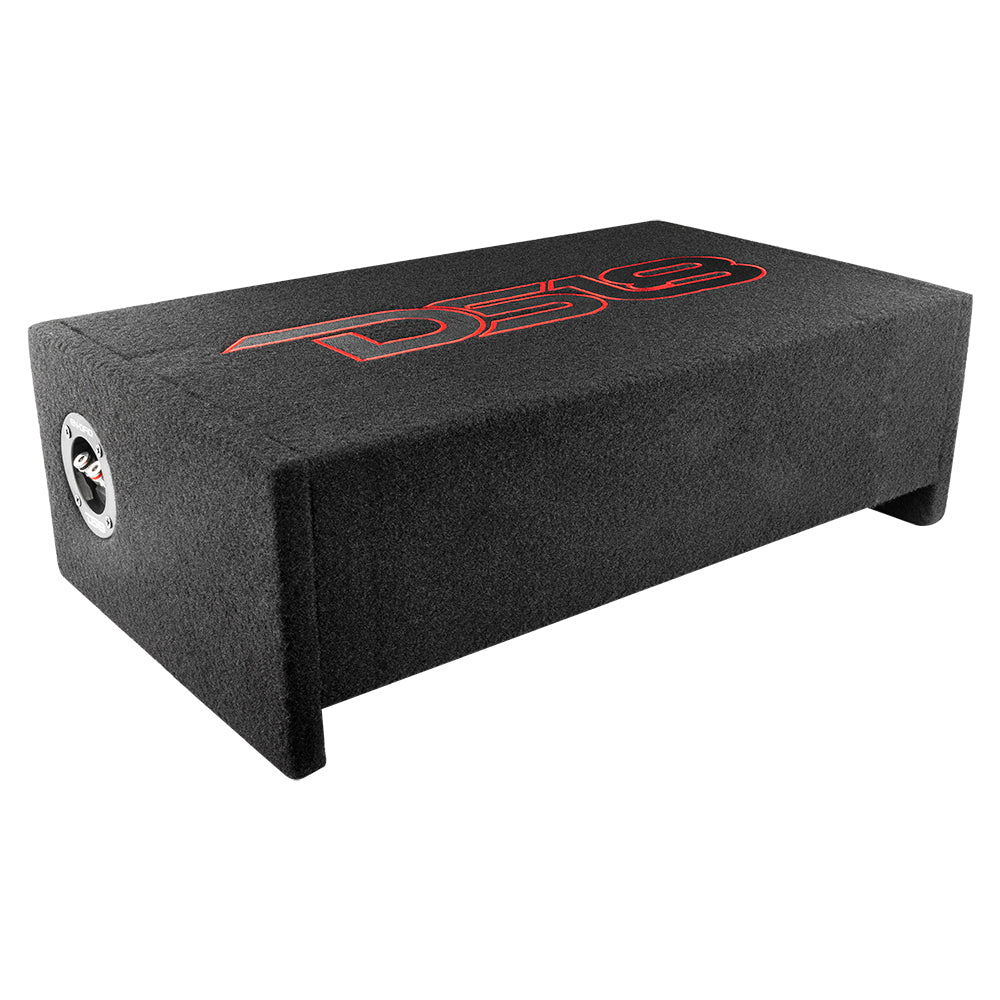

DS18 EN-DF10 10" Shallow Down Firing Subwoofer Enclosure 600 Watts
Designed to add magnificent bass to vehicles with minimal amounts of room for larger sized subs and boxes.
The EN-DF10 utilizes a 10 inch subwoofer in a compact enclosure
(sized at 20” x 11” x 6”) to help extend and elaborate the bass for your music!
This subwoofer requires an external amp to feed the 300w RMS 600w Max it needs at 4 ohms. This unit fits behind most conventional car seating, rear cubby, or small sized storage compartments so you can have clear and vibrant bass without sacrificing massive amounts of space.
This enclosure housed subwoofer is sure to bring nothing but good vibes when the beat drops.
Highlights
- Compact design allowing endless options for placement in areas with minimal space.
- Specially designed 10 inch subwoofer that maximizes bass response in spaces that are not typically designed for subwoofers.
Great For
- Pro Audio
- Car Audio
Technical Details
| GENERAL | |
| Speaker Type / Size | 10" Passive Subwoofer |
| Total Impedance | 4 ohms |
| Total RMS Power Handling | 300W |
| Total MAX Power Handling | 600W |
| Sensitivity (1w/1m) | 86dB |
| Frequency Response | 25-250Hz |
| Recommended Lo Pass Crossover | 80Hz |
| SPEAKER SPECIFICATIONS | |
| Voice Coil Diameter | 1.52" / 38.6mm |
| Voice Coil Former Material | Aluminum |
| Winding Material | Cooper |
| Cone Material | Injection PP Cone |
| Dust Cap Material | / |
| Surround Material | Rubber |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Magnet Weight | 40 Oz |
| MEASUREMENT | |
| Overall Height | 11.6" / 295mm |
| Overall Width | 20.27" / 515mm |
| Overall Depth | 6.3" / 160mm |
| EXTRA FEATURES | |
| Very Strong Wood (MDF) Box for better sound | Yes |
| High Efficiency Digital Amplifier Built-In | No |
| Auto Turn-On Function when using Hi-Level Input for easier installation | No |
| Remote Level Knob to get easy amount of Bass control | No |
| Shipping | This item ships to |
| Delivery | Estimated between and . Will usually ship within 1 business day. |
Description
DS18 EN-DF10 10" Shallow Down Firing Subwoofer Enclosure 600 Watts
Designed to add magnificent bass to vehicles with minimal amounts of room for larger sized subs and boxes.
The EN-DF10 utilizes a 10 inch subwoofer in a compact enclosure
(sized at 20” x 11” x 6”) to help extend and elaborate the bass for your music!
This subwoofer requires an external amp to feed the 300w RMS 600w Max it needs at 4 ohms. This unit fits behind most conventional car seating, rear cubby, or small sized storage compartments so you can have clear and vibrant bass without sacrificing massive amounts of space.
This enclosure housed subwoofer is sure to bring nothing but good vibes when the beat drops.
Highlights
- Compact design allowing endless options for placement in areas with minimal space.
- Specially designed 10 inch subwoofer that maximizes bass response in spaces that are not typically designed for subwoofers.
Great For
- Pro Audio
- Car Audio
Technical Details
| GENERAL | |
| Speaker Type / Size | 10" Passive Subwoofer |
| Total Impedance | 4 ohms |
| Total RMS Power Handling | 300W |
| Total MAX Power Handling | 600W |
| Sensitivity (1w/1m) | 86dB |
| Frequency Response | 25-250Hz |
| Recommended Lo Pass Crossover | 80Hz |
| SPEAKER SPECIFICATIONS | |
| Voice Coil Diameter | 1.52" / 38.6mm |
| Voice Coil Former Material | Aluminum |
| Winding Material | Cooper |
| Cone Material | Injection PP Cone |
| Dust Cap Material | / |
| Surround Material | Rubber |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Magnet Weight | 40 Oz |
| MEASUREMENT | |
| Overall Height | 11.6" / 295mm |
| Overall Width | 20.27" / 515mm |
| Overall Depth | 6.3" / 160mm |
| EXTRA FEATURES | |
| Very Strong Wood (MDF) Box for better sound | Yes |
| High Efficiency Digital Amplifier Built-In | No |
| Auto Turn-On Function when using Hi-Level Input for easier installation | No |
| Remote Level Knob to get easy amount of Bass control | No |
