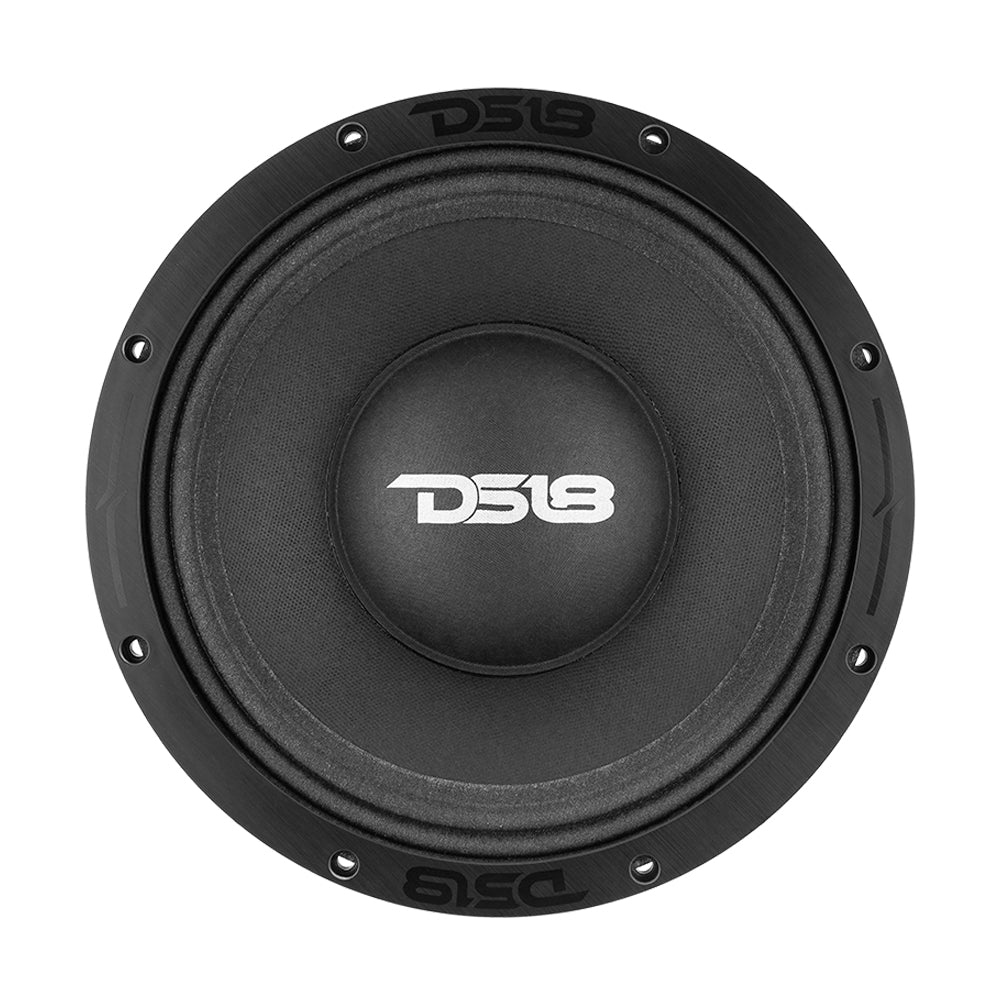

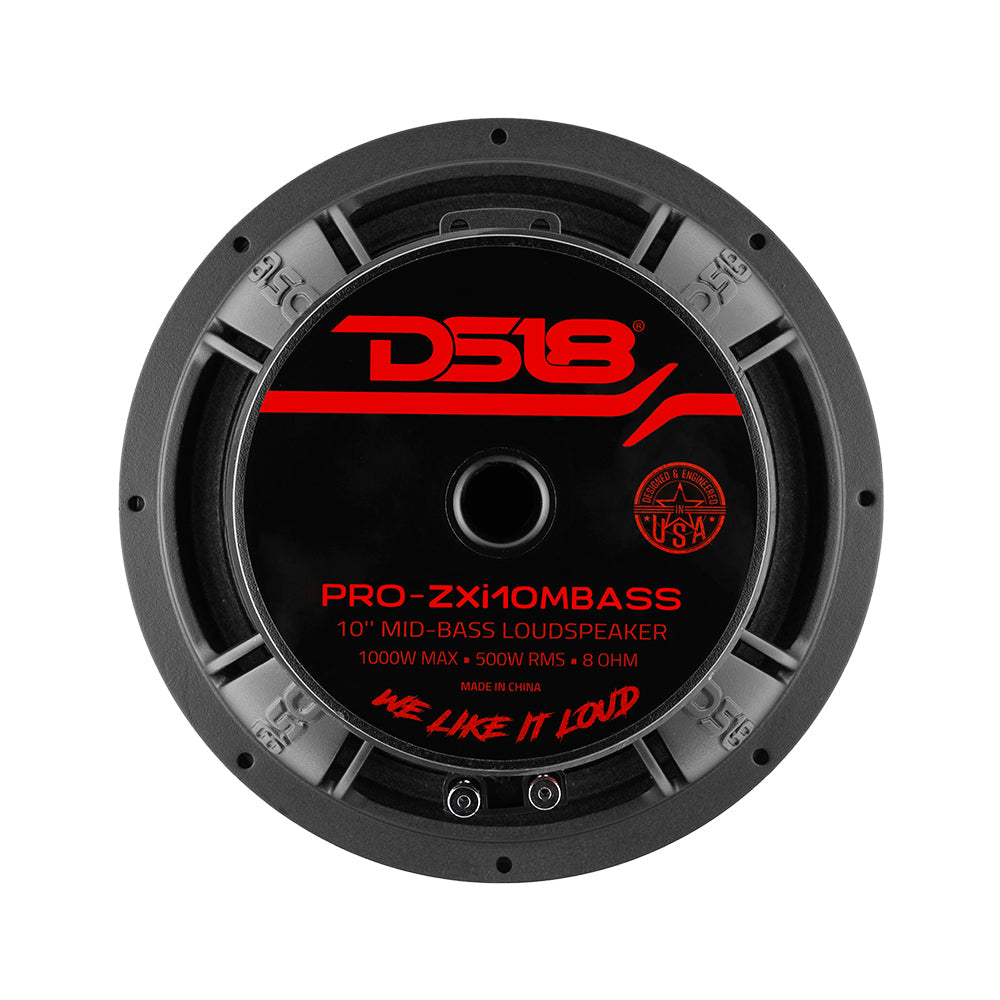

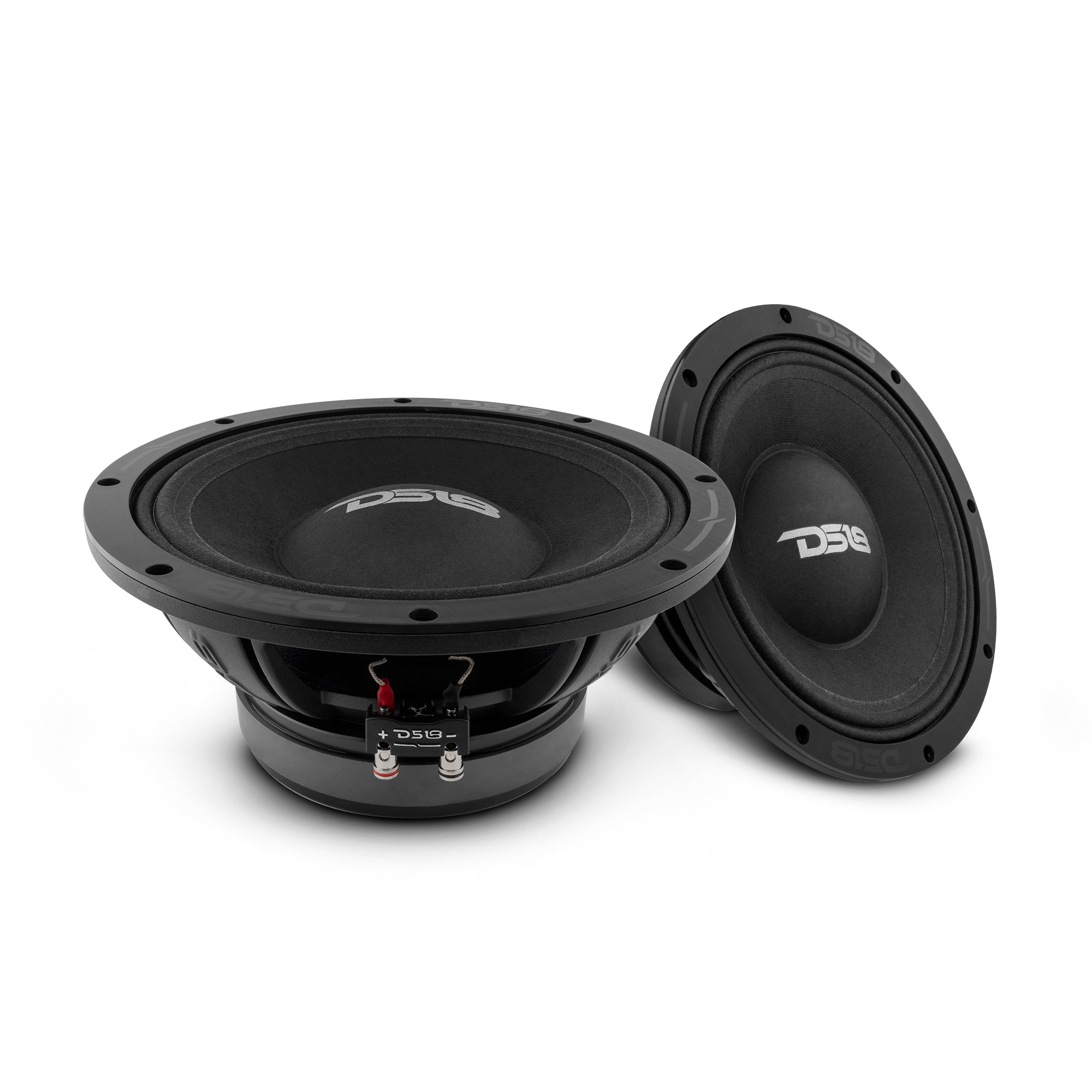

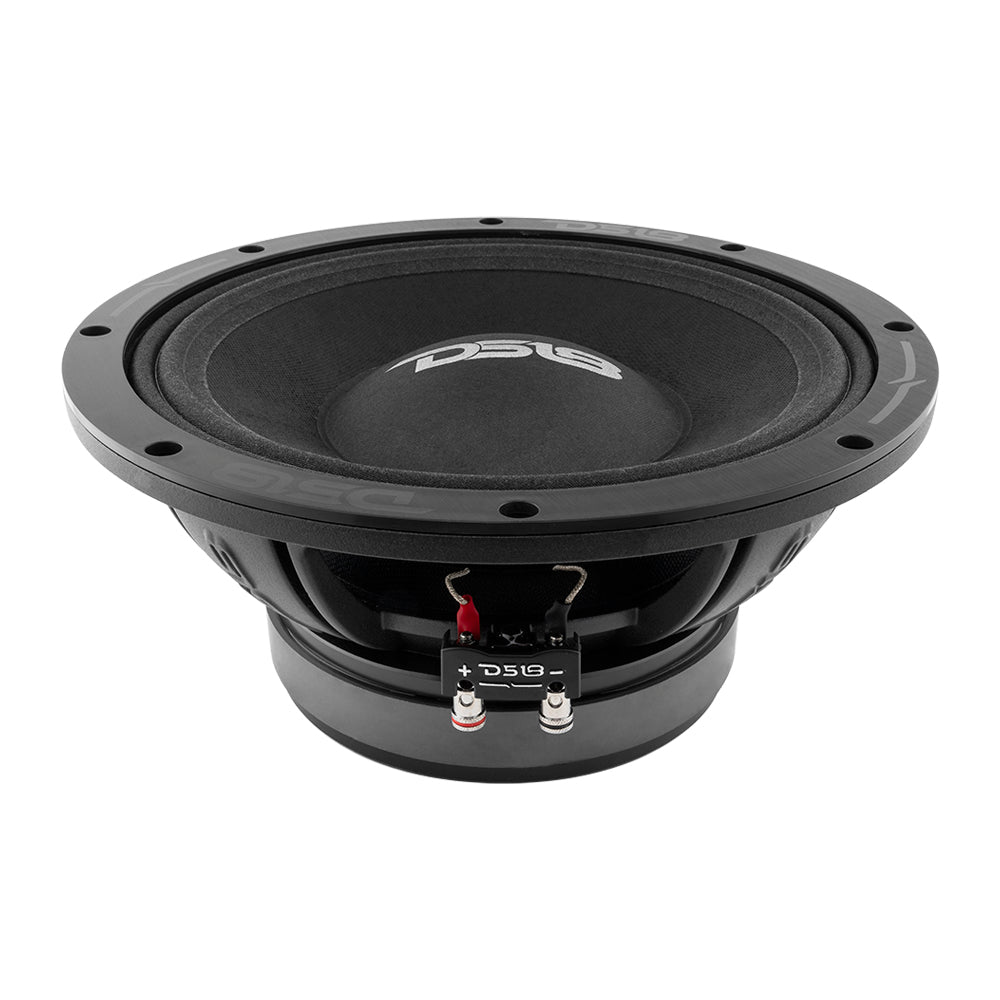

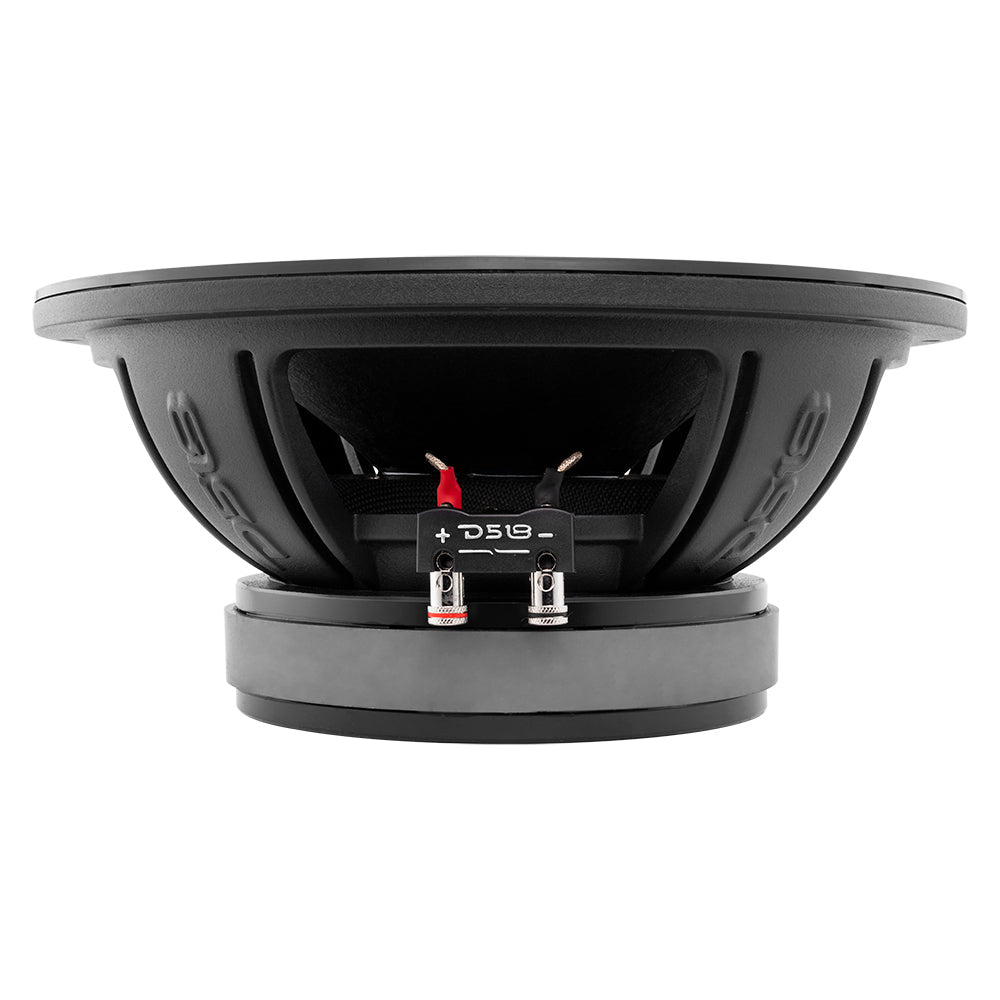

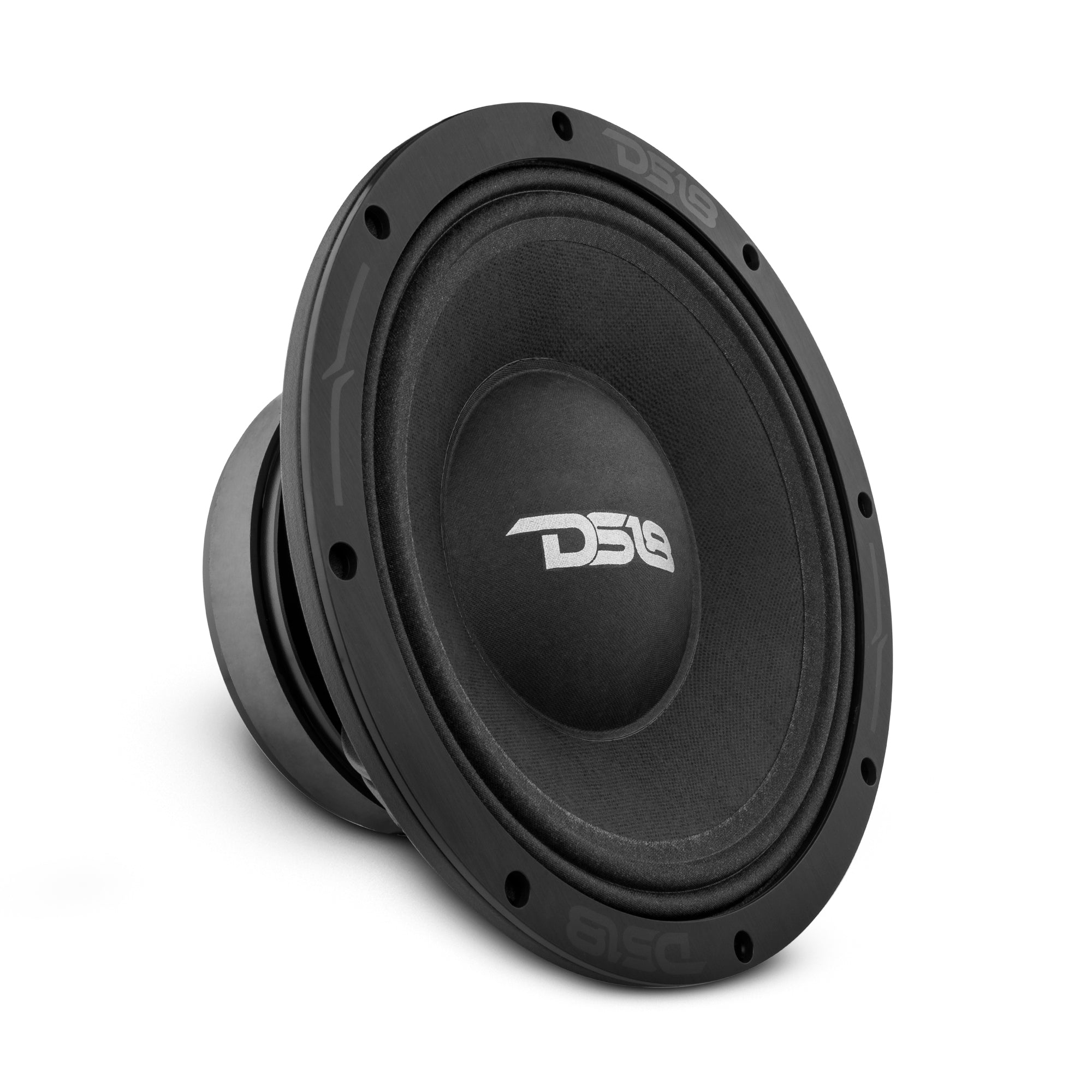

DS18 PRO-ZXI10MBASS 10" Mid-Bass Loudspeaker 1000 Watts 8-Ohm
The ZXI series brings Pro Audio to a bright new level of elegance, clarity, and loudness.
These speakers were designed specifically for the car audio enthusiast that wants unparalleled volumes with amazing sound quality all while absorbing the power thrown at efficiently allowing it to play up to extreme volumes with authority for extended periods of time.
The PRO-ZX10MBASS has a beautiful black basket face with strong black on black solid cone.
This 8-Ohms Mid Bass 10" handles an enormous 500 watts RMS and 1000 watts MAX power ensuring screaming loud Mid Bass frequencies acute and clear.
Highlights
- 10" solid cone black on black Mid Bass Speaker.
- Pro-Audio Mid Bass
- Max Power Handling: 1000 watts
- RMS Power Handling: 500 watts
- Frequency Response: 50Hz - 5.5KHz
- Voice Coil Diameter: 2.5"
- Voice Coil Material: USA Glass Fiber
- Impedance: 8-Ohm
- Sensitivity: 98dB
- Magnet Weight: 68 Oz
- Magnet Material: Ferrite
- Mounting Depth: 4.1"
- Recommended High Pass: 78Hz
Great for:
- Car Audio
- Pro Audio
- Motorcycles
- Home Studios
- Hi-Fi Installation
- Stunt Walls
- DIY Projects
![]()
![]()
Technical Details
PRO- ZXI10MBASS Product Manual
| SPECIFICATIONS |
| Nominal Diameter | 10" / 254mm |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 500W |
| MAX Power Handling | 1000W |
| Sensitivity (1w/1m) | 98 dB |
| Frequency Response | 50Hz - 5.5KHz |
| Recommended HI Pass Crossover | 78 Hz |
| Pair or single | Single |
| MOTOR | |
| Voice Coil Diameter | 2.5" / 63.5mm |
| Voice Coil Former Material | USA Glass fiber |
| Winding Material | JAPAN SV |
| Cone Material | Paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Basket Color | Black Sandblasted |
| Magnet Material | Ferrite |
| Magnet Weight | 68 Oz |
| Displacement Volume | 1.24L / 0.043ft3 |
| MEASUREMENT | |

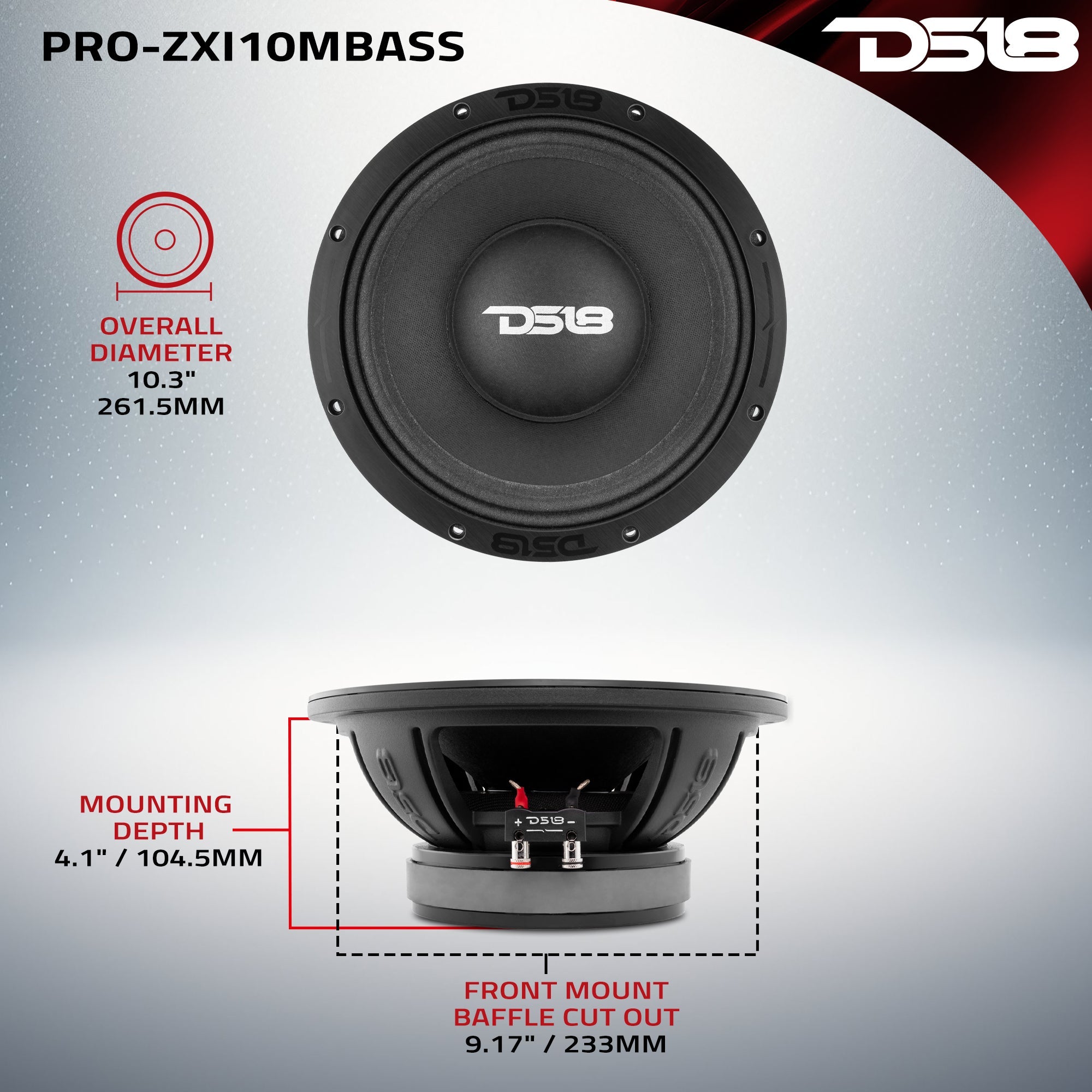

| Overall Diameter | 10.3" / 261.5mm |
| Overall Depth | 4.54" / 115.5mm |
| Front Mount Baffle Cutout | 9.17" / 233mm |
| Mounting Depth | 4.1" / 104.5mm |
| Motor Diameter | 6.3" / 160mm |
Technologies
- .
Wiring Wizard
- .
| Shipping | This item ships to |
| Delivery | Estimated between and . Will usually ship within 1 business day. |
Description
DS18 PRO-ZXI10MBASS 10" Mid-Bass Loudspeaker 1000 Watts 8-Ohm
The ZXI series brings Pro Audio to a bright new level of elegance, clarity, and loudness.
These speakers were designed specifically for the car audio enthusiast that wants unparalleled volumes with amazing sound quality all while absorbing the power thrown at efficiently allowing it to play up to extreme volumes with authority for extended periods of time.
The PRO-ZX10MBASS has a beautiful black basket face with strong black on black solid cone.
This 8-Ohms Mid Bass 10" handles an enormous 500 watts RMS and 1000 watts MAX power ensuring screaming loud Mid Bass frequencies acute and clear.
Highlights
- 10" solid cone black on black Mid Bass Speaker.
- Pro-Audio Mid Bass
- Max Power Handling: 1000 watts
- RMS Power Handling: 500 watts
- Frequency Response: 50Hz - 5.5KHz
- Voice Coil Diameter: 2.5"
- Voice Coil Material: USA Glass Fiber
- Impedance: 8-Ohm
- Sensitivity: 98dB
- Magnet Weight: 68 Oz
- Magnet Material: Ferrite
- Mounting Depth: 4.1"
- Recommended High Pass: 78Hz
Great for:
- Car Audio
- Pro Audio
- Motorcycles
- Home Studios
- Hi-Fi Installation
- Stunt Walls
- DIY Projects
![]()
![]()
Technical Details
PRO- ZXI10MBASS Product Manual
| SPECIFICATIONS |
| Nominal Diameter | 10" / 254mm |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 500W |
| MAX Power Handling | 1000W |
| Sensitivity (1w/1m) | 98 dB |
| Frequency Response | 50Hz - 5.5KHz |
| Recommended HI Pass Crossover | 78 Hz |
| Pair or single | Single |
| MOTOR | |
| Voice Coil Diameter | 2.5" / 63.5mm |
| Voice Coil Former Material | USA Glass fiber |
| Winding Material | JAPAN SV |
| Cone Material | Paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Basket Color | Black Sandblasted |
| Magnet Material | Ferrite |
| Magnet Weight | 68 Oz |
| Displacement Volume | 1.24L / 0.043ft3 |
| MEASUREMENT | |
| Overall Diameter | 10.3" / 261.5mm |
| Overall Depth | 4.54" / 115.5mm |
| Front Mount Baffle Cutout | 9.17" / 233mm |
| Mounting Depth | 4.1" / 104.5mm |
| Motor Diameter | 6.3" / 160mm |
