DS18 PRO-X8.4BMRGB 8" Mid-Range Loudspeaker with Bullet & RGB LED Light 550 Watts 4-Ohm
DS18 is always innovating and dominating on the pro audio scene. The newest addition to our pro audio RGB line is the extremely loud PRO-X8.4BMRGB. This amazing speaker shares all the characteristics of our very popular PRO-X8.4BM but with some added flair which is the full RGB bullet tweeter. This speaker comes in at 275w RMS and 550w Peak power with a 96db sensitivity so you will have no problem getting loud easily. The added RGB will bring that added flair and ambience aesthetic to match your mood or color scheme.
Highlights
- High power pro audio speaker handling 275w RMS and 550w Peak power.
- Integrated RGB resonator (bullet tweeter) 4 wire connections for a bright and brilliant aesthetic.
- Strong ferrite magnet with CCA high wattage voice coil and 96db sensitivity.
Technical Details
| Nominal Diameter | 8 |
| Nominal Impedance | 4 Ohms |
| RMS Power Handing | 275w |
| MAX Power Handing | 550w |
| Sensitivity (1w/1m) | 96dB |
| Frequency Response | 125Hz-16KHz |
| Recommended HI Pass Crossover | 120 Hz |
| Motor | |
| Voice Coil Diameter | 38.6mm / 1.5" |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Paper |
| Bullet Material | Translucid ABS with RGB LED |
| Surround Material | Cloth |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Magnet Weight | 30 Oz |
| Displacement Volume | 0.046L |
| Thiele & Small Parameters | |
| Equivalent Volume | Vas 7.1226L |
| Excursion (one way) | Xmax 9.3mm |
| Free Air Resonance | Fs 114Hz |
| Mechanical Factor | Qms 9.052 |
| Electrical Factor | Qes 0.877 |
| Total Factor | Qts 0.8 |
| Mechanical Mass | Mms 17.699g |
| Mechanical Compliance | Cms 0.11 m/N |
| BL Factor | BL 6.945 |
| Voice Coil Inductance | Le 5.31mH |
| Cone Area | Sd 213.82 cm2 |
| CD Resistance | Re 3.2 ohms |
| Measurements | |

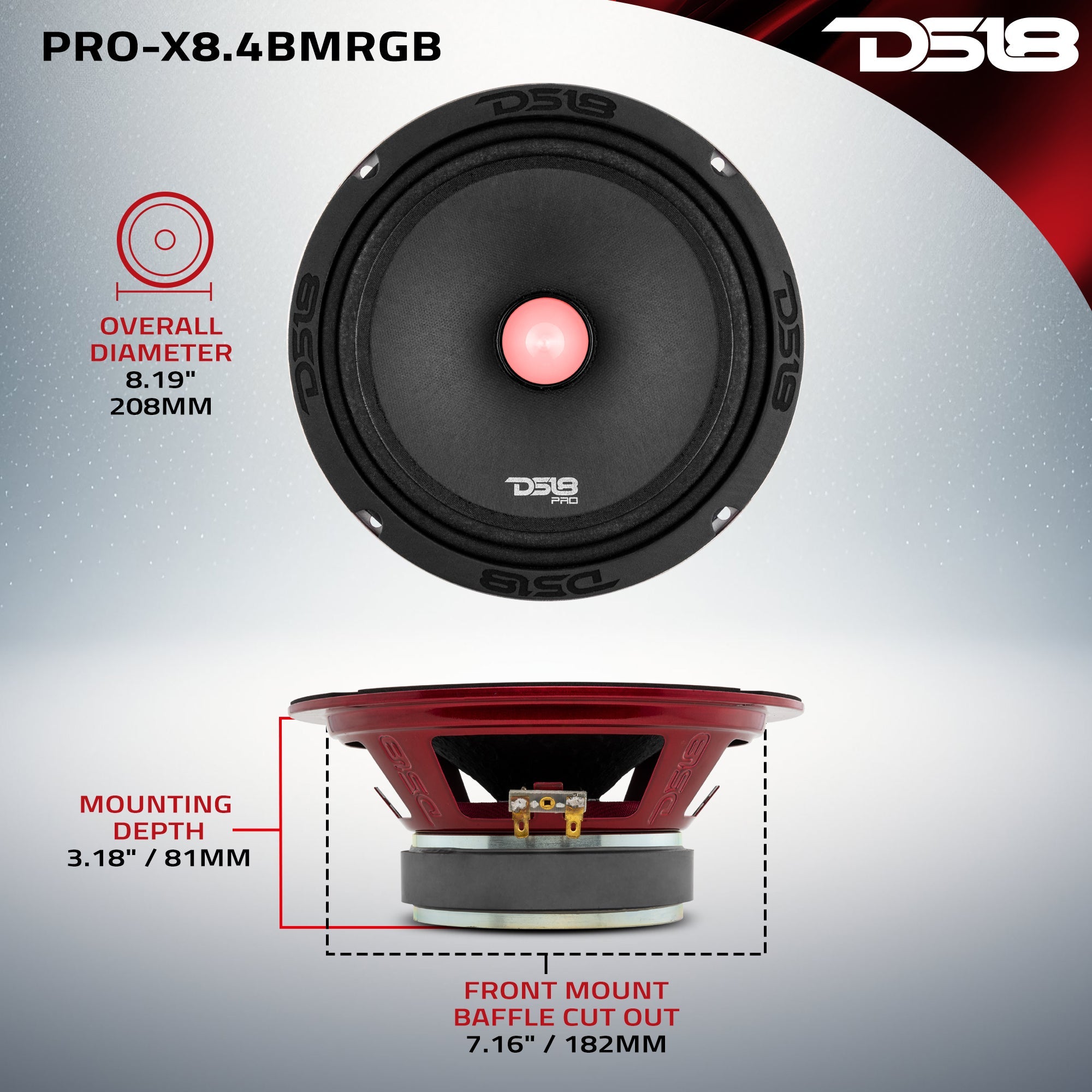

| Overall Diameter | 8.19" / 208mm |
| Overall Depth | 3.42" / 87mm |
| Front Mount Baffle Cutout | 7.16" / 182mm |
| Mounting Depth | 3.18" / 81mm |
| Motor Diameter | 4.72" / 120mm |
| Shipping | This item ships to |
| Delivery | Estimated between and . Will usually ship within 1 business day. |
Description
DS18 PRO-X8.4BMRGB 8" Mid-Range Loudspeaker with Bullet & RGB LED Light 550 Watts 4-Ohm
DS18 is always innovating and dominating on the pro audio scene. The newest addition to our pro audio RGB line is the extremely loud PRO-X8.4BMRGB. This amazing speaker shares all the characteristics of our very popular PRO-X8.4BM but with some added flair which is the full RGB bullet tweeter. This speaker comes in at 275w RMS and 550w Peak power with a 96db sensitivity so you will have no problem getting loud easily. The added RGB will bring that added flair and ambience aesthetic to match your mood or color scheme.
Highlights
- High power pro audio speaker handling 275w RMS and 550w Peak power.
- Integrated RGB resonator (bullet tweeter) 4 wire connections for a bright and brilliant aesthetic.
- Strong ferrite magnet with CCA high wattage voice coil and 96db sensitivity.
Technical Details
| Nominal Diameter | 8 |
| Nominal Impedance | 4 Ohms |
| RMS Power Handing | 275w |
| MAX Power Handing | 550w |
| Sensitivity (1w/1m) | 96dB |
| Frequency Response | 125Hz-16KHz |
| Recommended HI Pass Crossover | 120 Hz |
| Motor | |
| Voice Coil Diameter | 38.6mm / 1.5" |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Paper |
| Bullet Material | Translucid ABS with RGB LED |
| Surround Material | Cloth |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Magnet Weight | 30 Oz |
| Displacement Volume | 0.046L |
| Thiele & Small Parameters | |
| Equivalent Volume | Vas 7.1226L |
| Excursion (one way) | Xmax 9.3mm |
| Free Air Resonance | Fs 114Hz |
| Mechanical Factor | Qms 9.052 |
| Electrical Factor | Qes 0.877 |
| Total Factor | Qts 0.8 |
| Mechanical Mass | Mms 17.699g |
| Mechanical Compliance | Cms 0.11 m/N |
| BL Factor | BL 6.945 |
| Voice Coil Inductance | Le 5.31mH |
| Cone Area | Sd 213.82 cm2 |
| CD Resistance | Re 3.2 ohms |
| Measurements | |
| Overall Diameter | 8.19" / 208mm |
| Overall Depth | 3.42" / 87mm |
| Front Mount Baffle Cutout | 7.16" / 182mm |
| Mounting Depth | 3.18" / 81mm |
| Motor Diameter | 4.72" / 120mm |
Shipping
| Shipping | This item ships to |
| Delivery | Estimated between and . Will usually ship within 1 business day. |
