DS18 ELITE ZXI.1XL 1-Channel Class D Amplifier 2200 Watts RMS @ 1-Ohm
Over time evolution is inevitable. the same can be said for DS18's new Z series model of amplifiers! we took one of our best-selling lines and upgraded every aspect of it. they now put out even more power, have more top-of-the-line components, and are guaranteed to deliver amazing quantities of RMS power on demand.

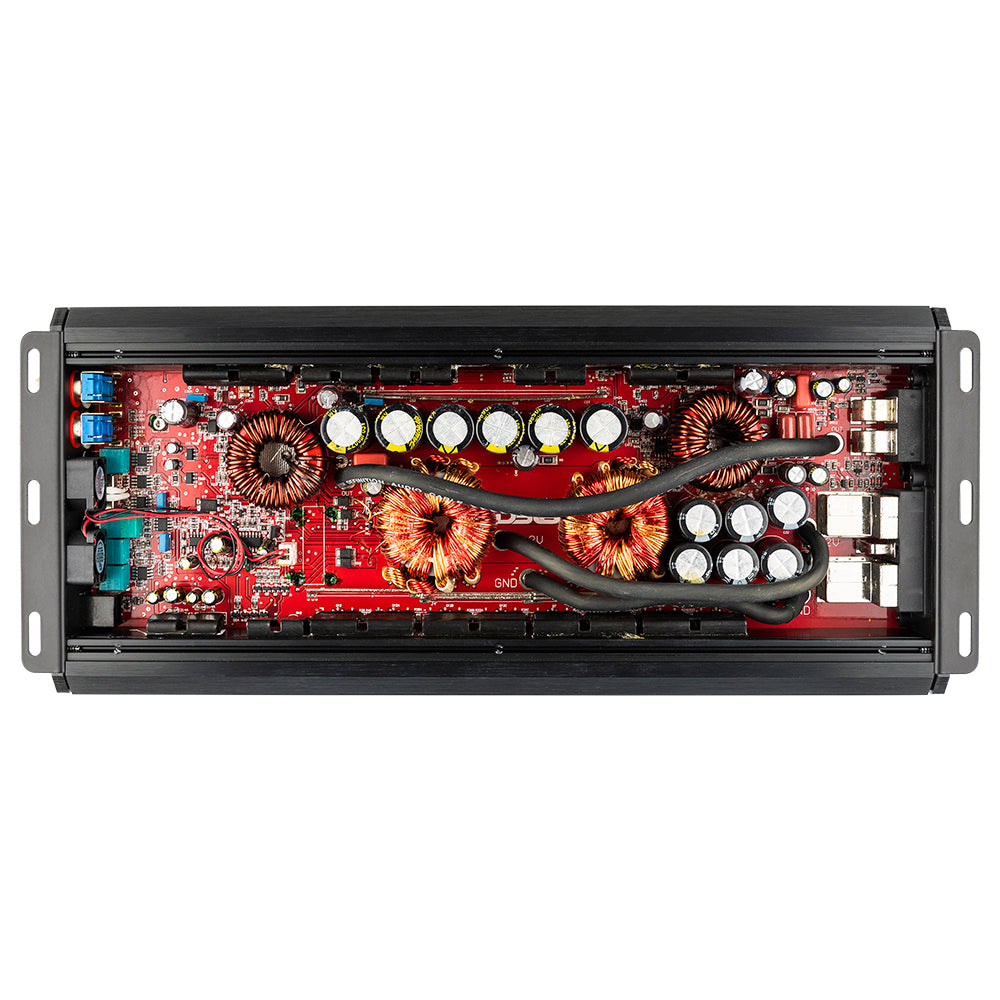

The previous Z series was very powerful to begin with and for 2020 we packed all new DS18 branded boards with much more efficient electronics, and with all new heat sync casings to make an amazing amp line even more perfect for your needs. you have your pick of multiple 2 channel, 4 channel, and Monoblock amps in this line to power every aspect of your DS18 audio system.
Highlights

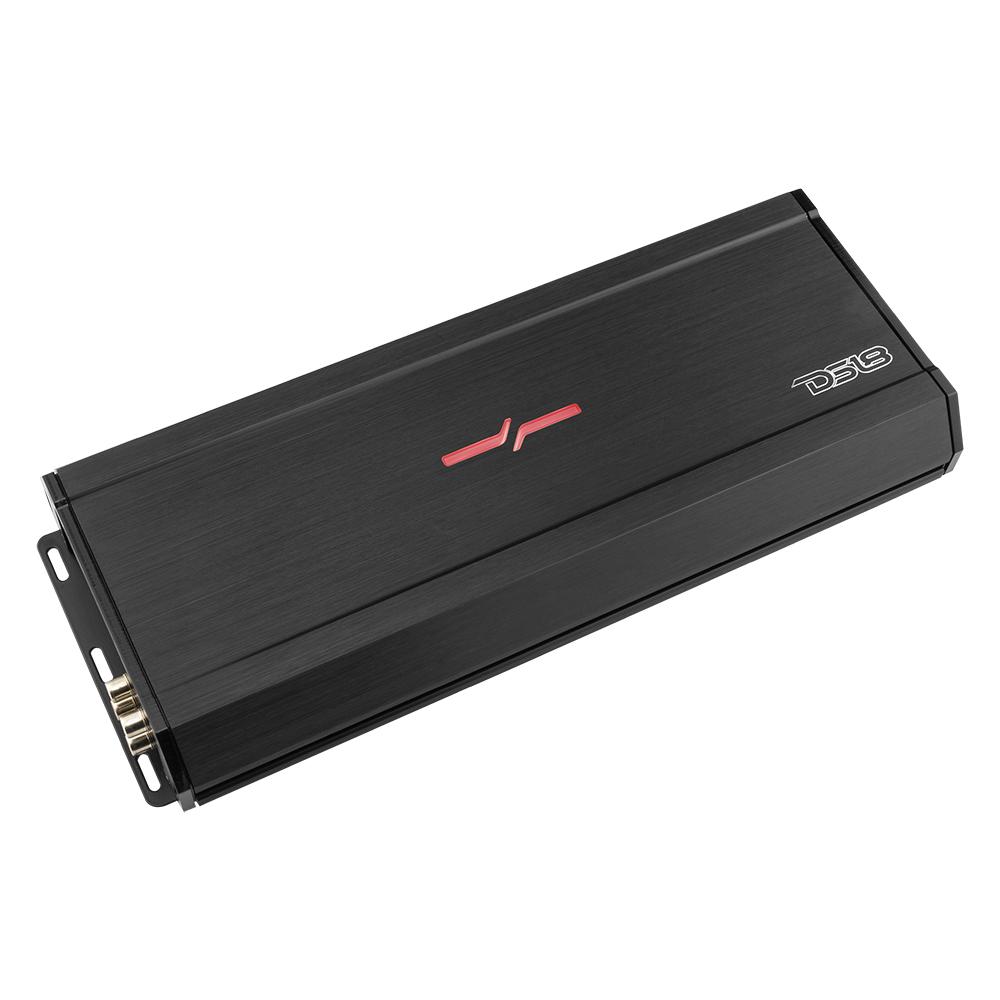

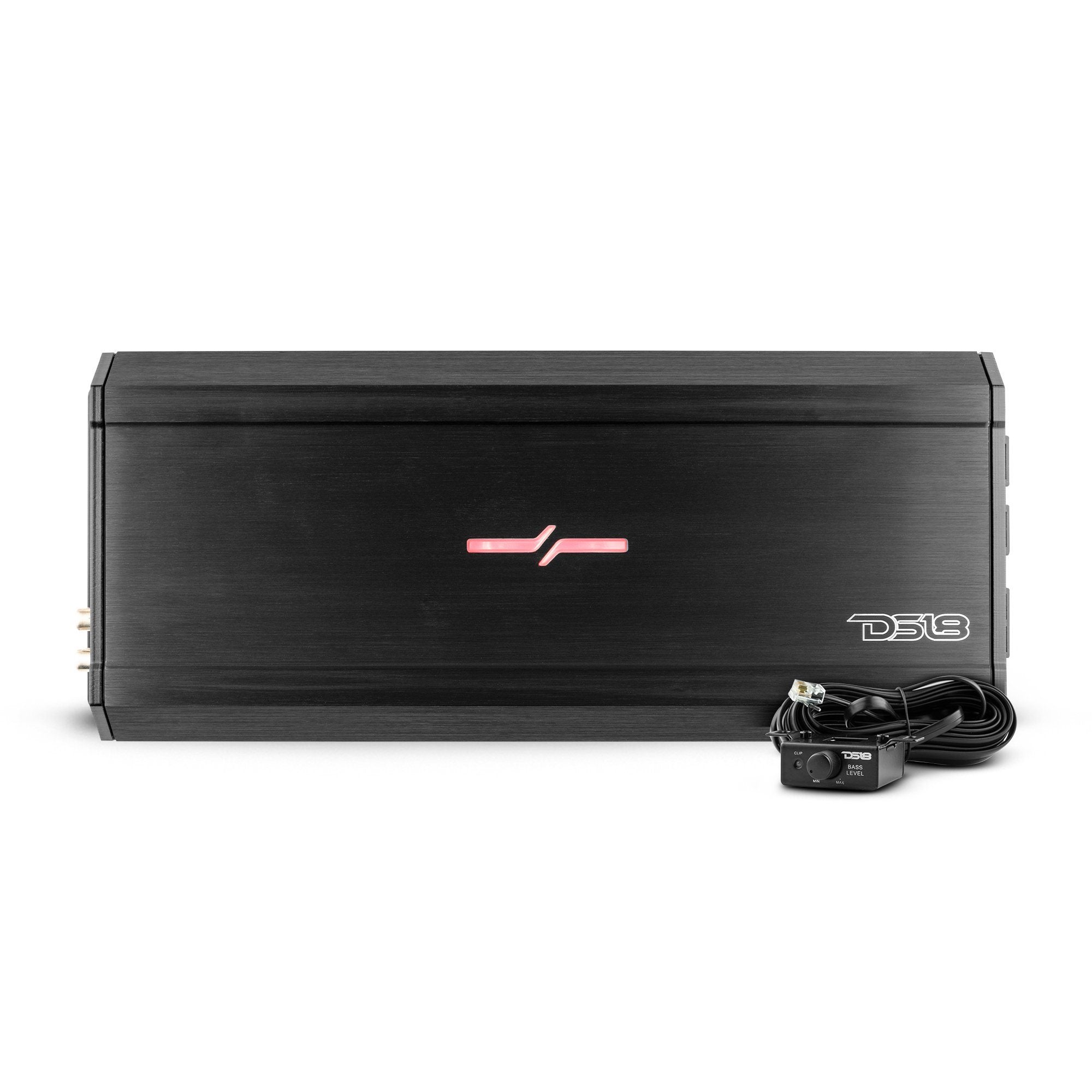

- Led lighting on the front of the amp for a soothing aesthetic look

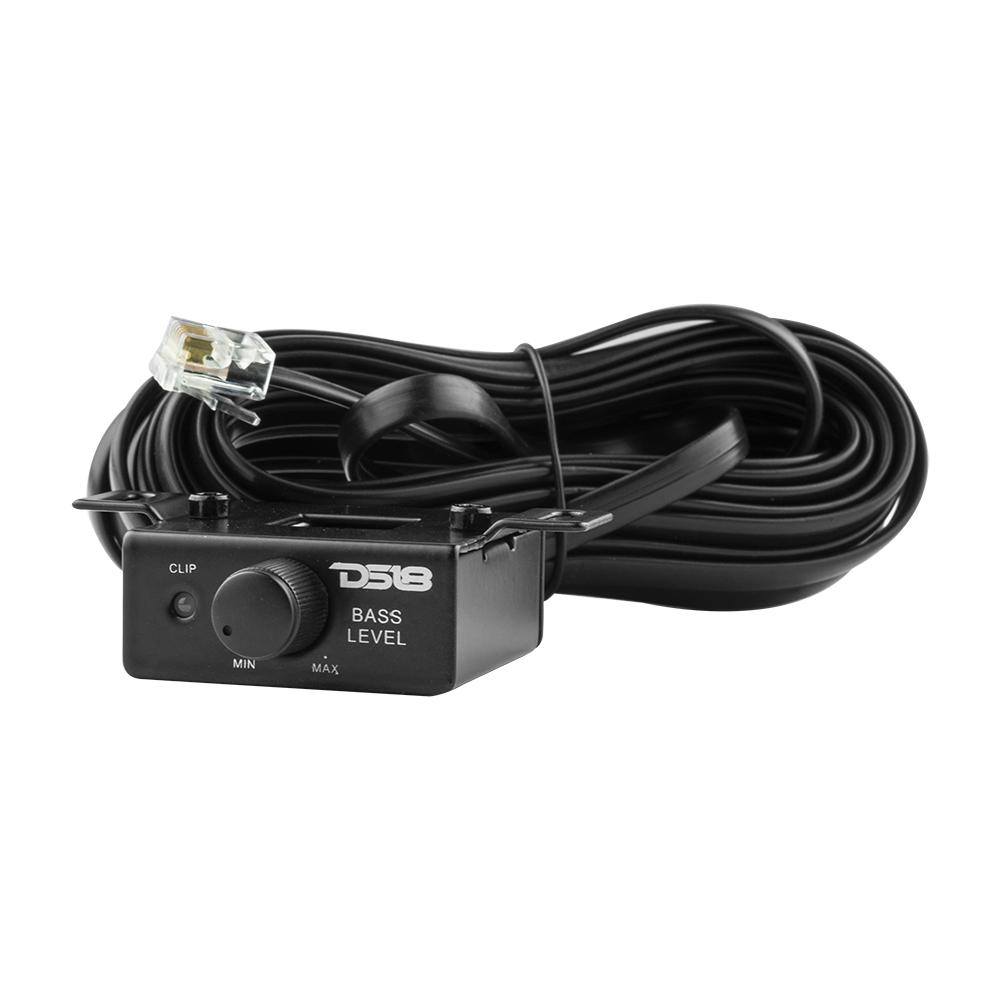

- Bass knob to control your bass from song to song with precise accuracy.
- Monoblock designed to give big power in a small package.
- RMS rating of 2200w @ 1ohm, 1500w @ 2ohms, and 900w @ 4 ohms

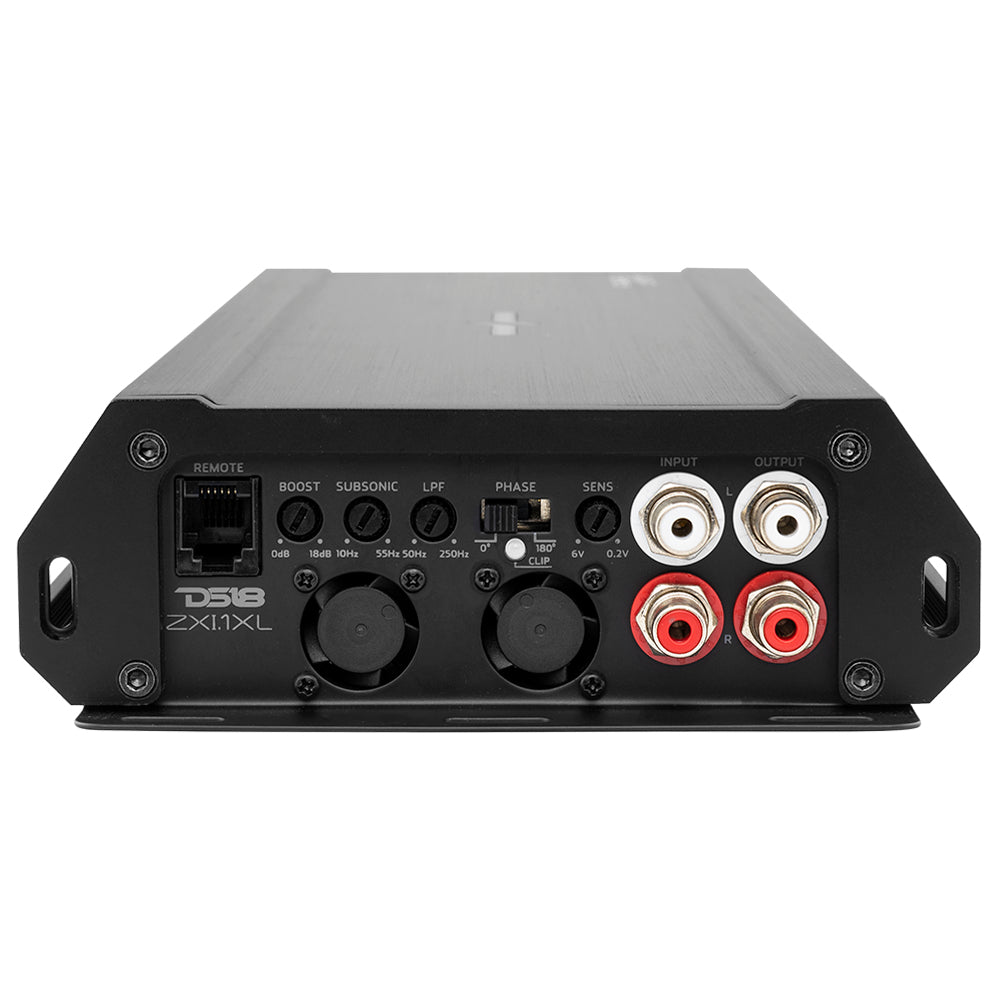

- Bass boost, Frequency adjust, and phase controls are all there to help you get the precise and accurate tuning for distortion free sound.
Technical Details
| Model | ZXI.1XL |
| Class | D |
| Channels | 1 |
| RMS PORWER @ 4 OHMS | 900W x 1CH |
| RMS PORWER @ 2 OHMS | 1500W x1CH |
| RMS POWER @ 1 OHM | 2200W x 1CH |
| PEAK POWER @ 4 OHMS | 1400W x 1CH |
| PEAK POWER @ 2 OHMS | 2200W X 1CH |
| PEAK POWER @ 1 OHM | 3000W x1CH |
| MINIMUM IMPEDANCE | 1 OHM |
| FREQUENCY RESPONSE | 20-500KHz |
| THD % | 0.10% |
| INPUT SENSITIVITY | 0.2-6V |
| SIGNAL/NOISE RATIO | >90dB |
| CROSSOVER LOW PASS | 50-250Hz |

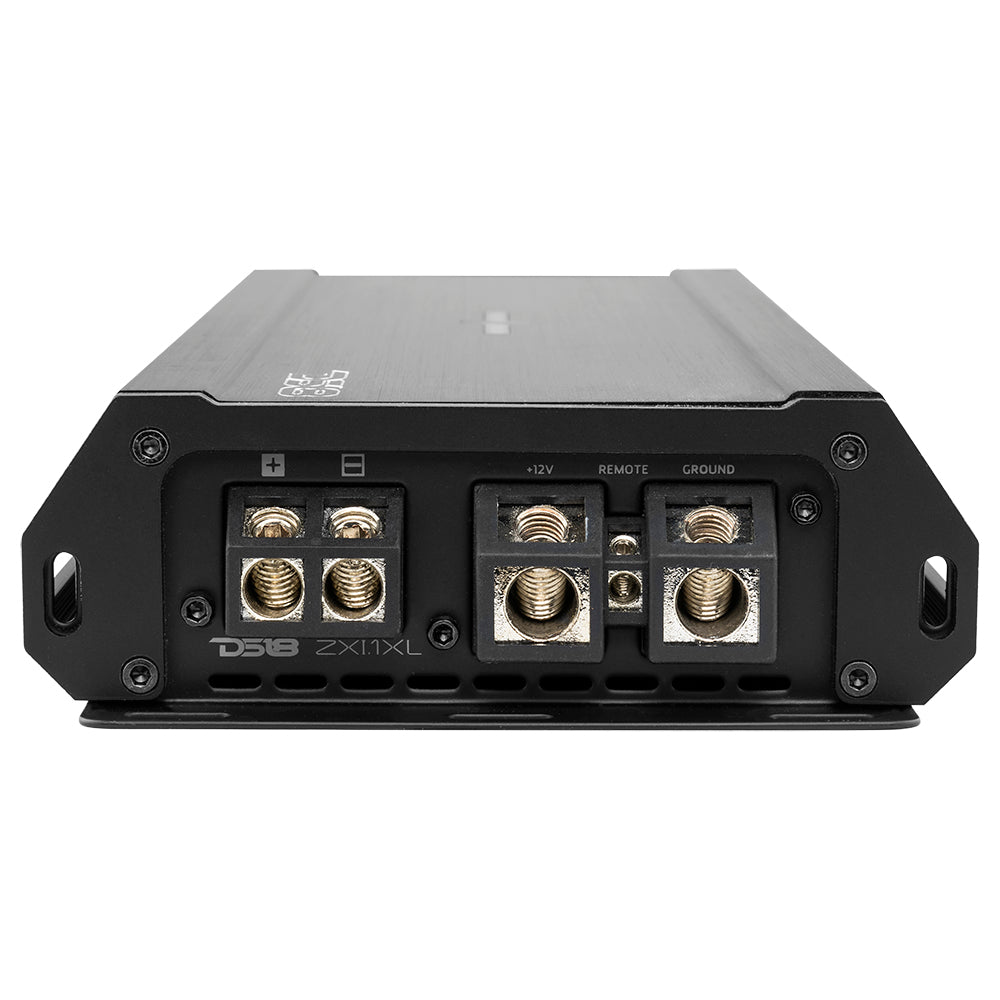

| POWER INPUT SIZE | 0GA |
| DIMENSIONS LxDxH (INCHES) | 15.4 x 5.7 x 1.9 |
| Shipping | This item ships to |
| Delivery | Estimated between and . Will usually ship within 1 business day. |
Description
DS18 ELITE ZXI.1XL 1-Channel Class D Amplifier 2200 Watts RMS @ 1-Ohm
Over time evolution is inevitable. the same can be said for DS18's new Z series model of amplifiers! we took one of our best-selling lines and upgraded every aspect of it. they now put out even more power, have more top-of-the-line components, and are guaranteed to deliver amazing quantities of RMS power on demand.
The previous Z series was very powerful to begin with and for 2020 we packed all new DS18 branded boards with much more efficient electronics, and with all new heat sync casings to make an amazing amp line even more perfect for your needs. you have your pick of multiple 2 channel, 4 channel, and Monoblock amps in this line to power every aspect of your DS18 audio system.
Highlights
- Led lighting on the front of the amp for a soothing aesthetic look
- Bass knob to control your bass from song to song with precise accuracy.
- Monoblock designed to give big power in a small package.
- RMS rating of 2200w @ 1ohm, 1500w @ 2ohms, and 900w @ 4 ohms
- Bass boost, Frequency adjust, and phase controls are all there to help you get the precise and accurate tuning for distortion free sound.
Technical Details
| Model | ZXI.1XL |
| Class | D |
| Channels | 1 |
| RMS PORWER @ 4 OHMS | 900W x 1CH |
| RMS PORWER @ 2 OHMS | 1500W x1CH |
| RMS POWER @ 1 OHM | 2200W x 1CH |
| PEAK POWER @ 4 OHMS | 1400W x 1CH |
| PEAK POWER @ 2 OHMS | 2200W X 1CH |
| PEAK POWER @ 1 OHM | 3000W x1CH |
| MINIMUM IMPEDANCE | 1 OHM |
| FREQUENCY RESPONSE | 20-500KHz |
| THD % | 0.10% |
| INPUT SENSITIVITY | 0.2-6V |
| SIGNAL/NOISE RATIO | >90dB |
| CROSSOVER LOW PASS | 50-250Hz |
| POWER INPUT SIZE | 0GA |
| DIMENSIONS LxDxH (INCHES) | 15.4 x 5.7 x 1.9 |
