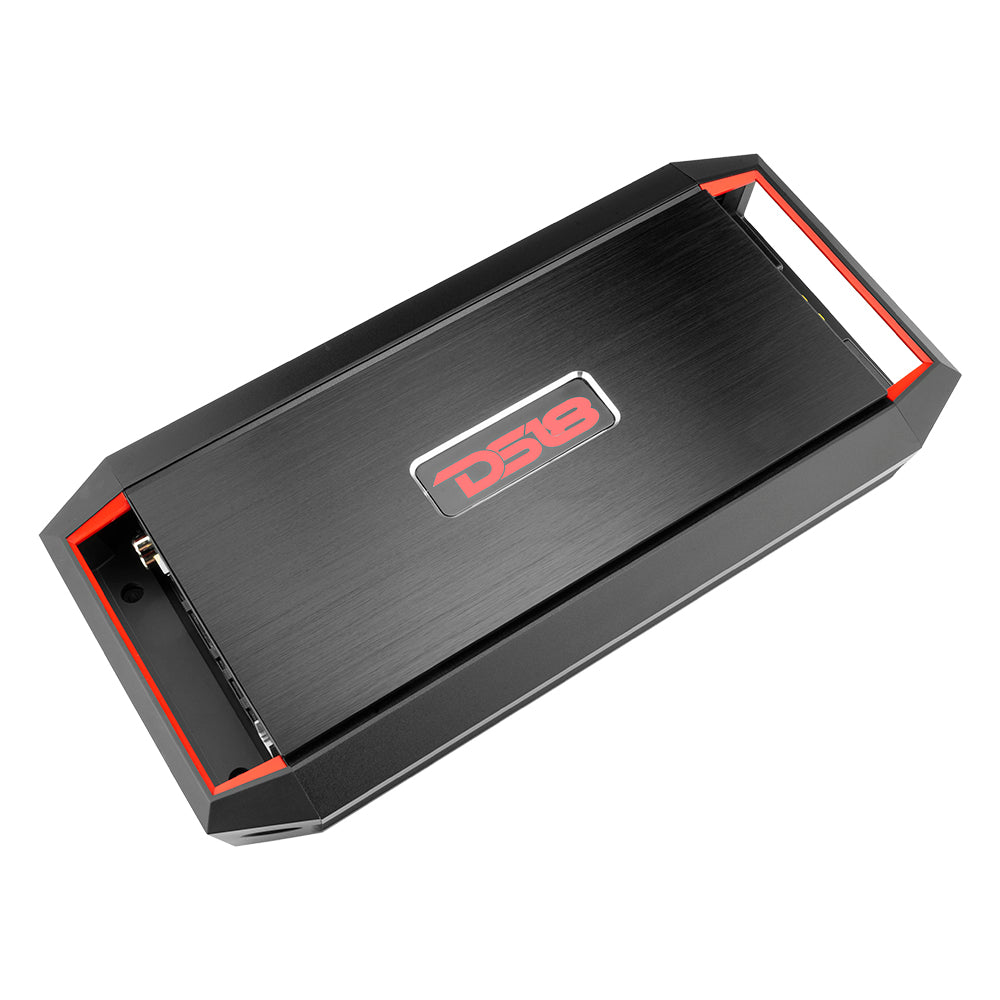

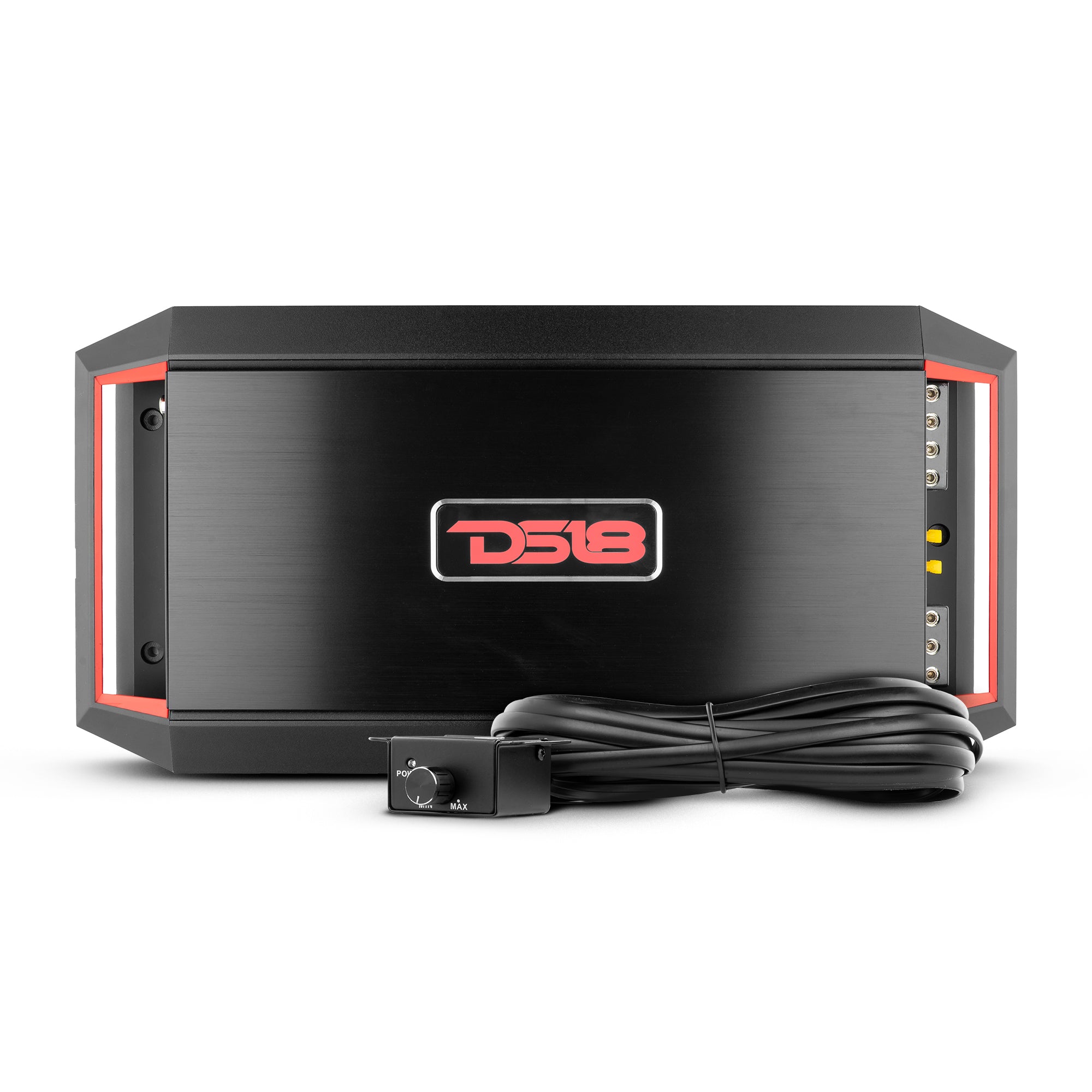

DS18 GEN-X1200.1 Class AB 1-Channel Monoblock Amplifier 1200 Watts
The DS18 GEN-X line was developed with the customer in mind. We wanted to produce the sturdiest amplifier possible within a reasonable price range, and after months of R&D, we finally put together the most attractive design with top of the line internal technologies (all internal parts are manufactured by DS18).
With their lower power consumption and high efficiency, the GEN-X amplifiers can be installed without the need of a secondary or high-output alternator.
Highlights
-
Lightweight design that retains very high durability with incorporated high efficiency heat sync.
-

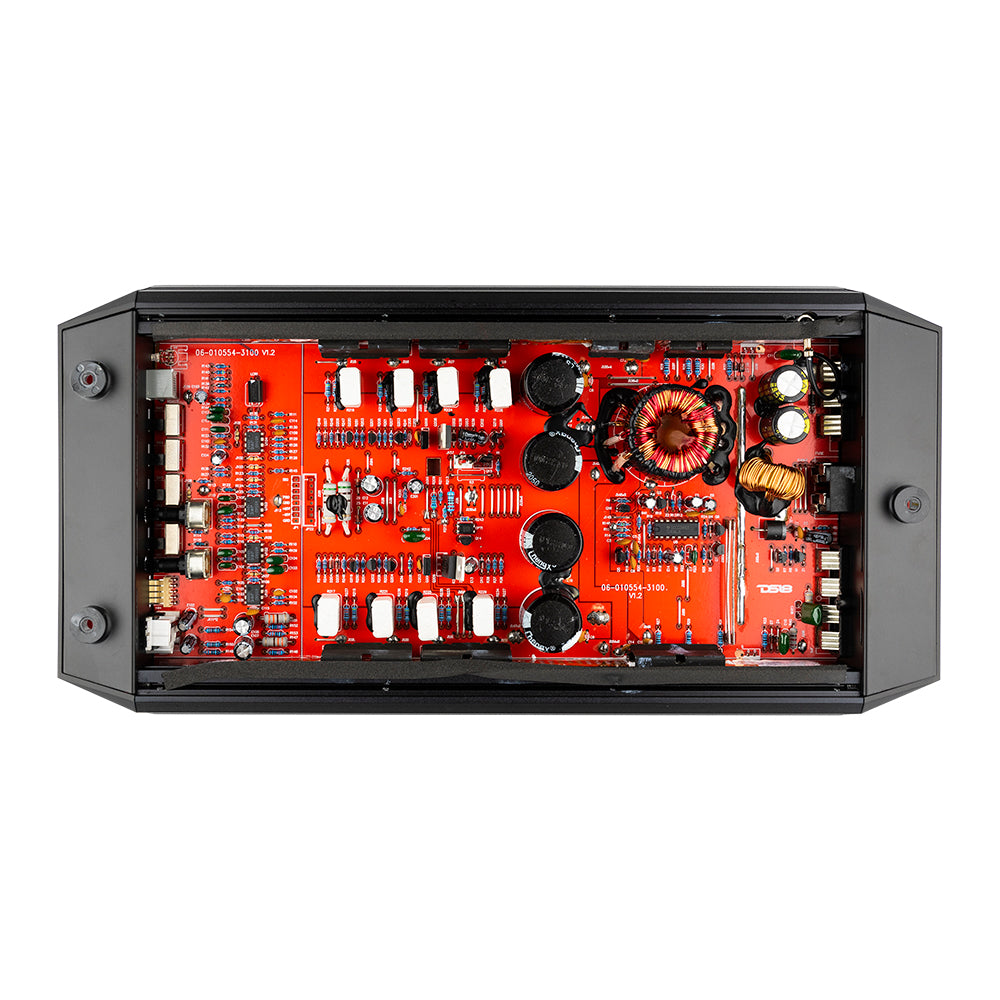

High quality circuit board to give the most power with a high efficiency rate.
-

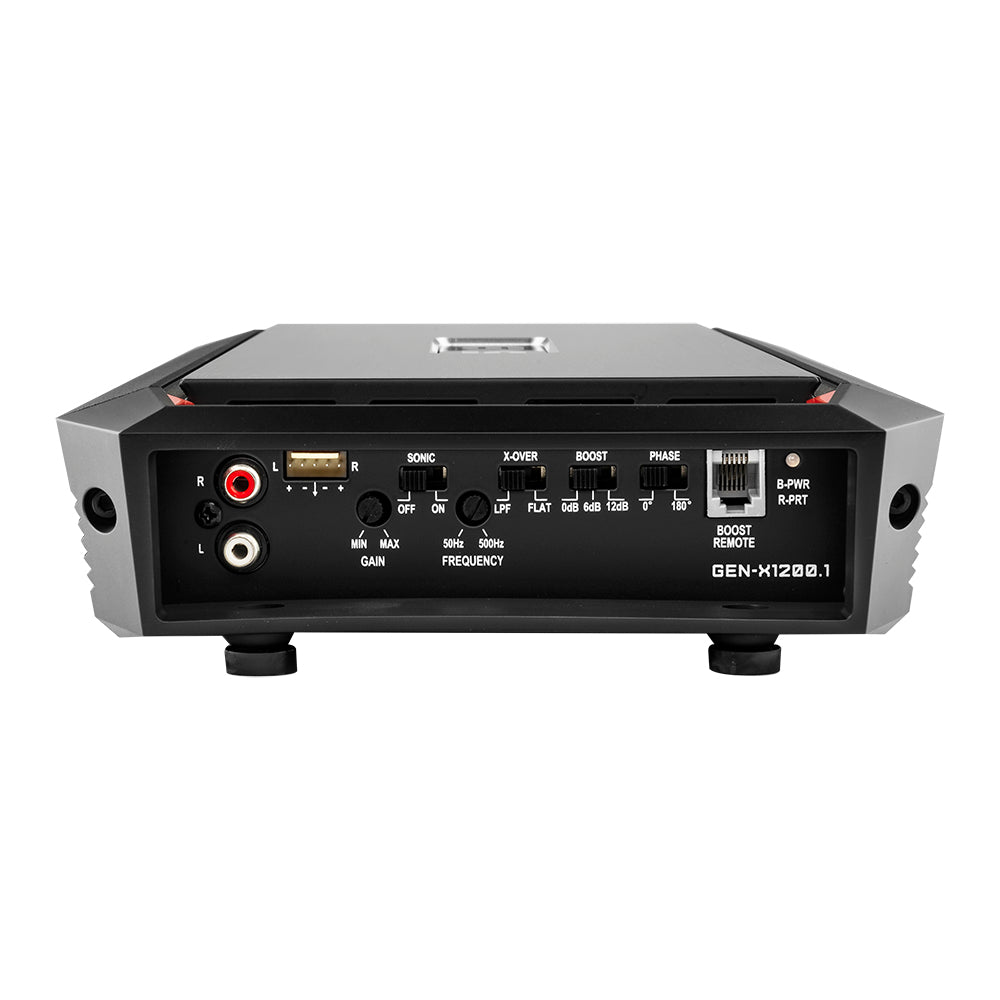

Light up DS18 logo and fully adjustable crossover filters.
Technical Details
| Model: | GEN-X1200.1 |
| Type: | Amplifier |
| Number of Channels: | 1 |
| Frequency Response: | 20Hz - 20KHz |
| MAX Power: | 1200W |
| 1 Ohm RMS Power (14.4V) Per Channel: | 1 x 310W |
| 2 Ohms RMS Power (14.4V) Per Channel: | 1 x 220W |
| 4 Ohms RMS Power (14.4V) Per Channel: | 1 x 130W |
| Speaker Impedance Range: | 1 - 4 Ohms |
| Input Sensitivity: | 0.2V-+6V |
| Low Pass Filter: | 50Hz - 500Hz |

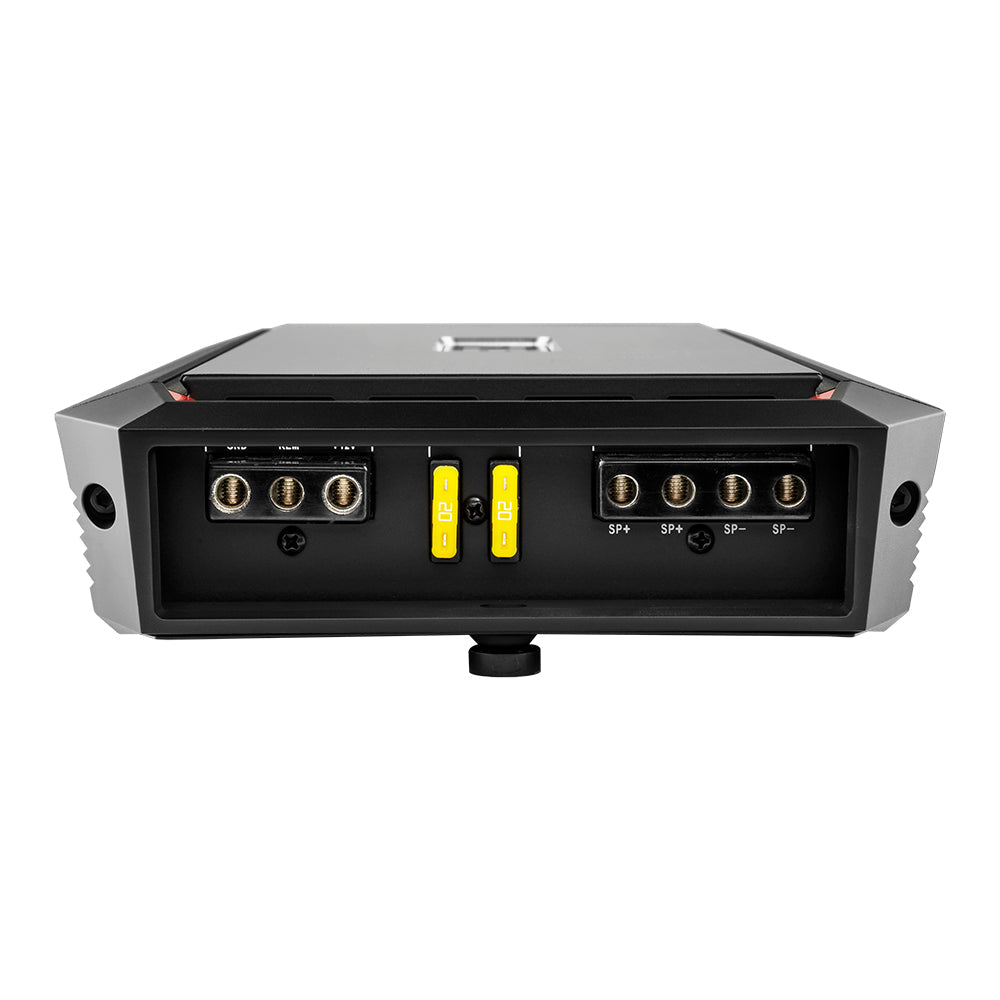

| Fuse Size: | 2 x 20A |
| Signal-to-Noise Ratio: | 98dB |
| THD: | 0.08% |
| Product Dimensions (L x W x H): | 380 x 190 x 55mm |
| Shipping | This item ships to |
| Delivery | Estimated between and . Will usually ship within 1 business day. |
Description
DS18 GEN-X1200.1 Class AB 1-Channel Monoblock Amplifier 1200 Watts
The DS18 GEN-X line was developed with the customer in mind. We wanted to produce the sturdiest amplifier possible within a reasonable price range, and after months of R&D, we finally put together the most attractive design with top of the line internal technologies (all internal parts are manufactured by DS18).
With their lower power consumption and high efficiency, the GEN-X amplifiers can be installed without the need of a secondary or high-output alternator.
Highlights
-
Lightweight design that retains very high durability with incorporated high efficiency heat sync.
-
High quality circuit board to give the most power with a high efficiency rate.
-
Light up DS18 logo and fully adjustable crossover filters.
Technical Details
| Model: | GEN-X1200.1 |
| Type: | Amplifier |
| Number of Channels: | 1 |
| Frequency Response: | 20Hz - 20KHz |
| MAX Power: | 1200W |
| 1 Ohm RMS Power (14.4V) Per Channel: | 1 x 310W |
| 2 Ohms RMS Power (14.4V) Per Channel: | 1 x 220W |
| 4 Ohms RMS Power (14.4V) Per Channel: | 1 x 130W |
| Speaker Impedance Range: | 1 - 4 Ohms |
| Input Sensitivity: | 0.2V-+6V |
| Low Pass Filter: | 50Hz - 500Hz |
| Fuse Size: | 2 x 20A |
| Signal-to-Noise Ratio: | 98dB |
| THD: | 0.08% |
| Product Dimensions (L x W x H): | 380 x 190 x 55mm |
