DS18 ZXI6.4D ZXI High Excursion 6.5" Car Audio Subwoofer 600W Watts 4-Ohm DVC Quad Stacked Magnets
Do you want more excursion, more thumping power, and to shake everyone's mirrors around you?
DS18 has the perfect subwoofer to satisfy all your bass head needs in the newly designed ZXI6.4D high excursion subwoofer. This monster mini sub packs a whopping 1.5 inch coil made to withstand high amounts of power with the utmost efficiency while producing thunderous distortion free bass.
This sub has a much lower than normal FS so it can be used in larger boxes with lower than normal tuning. Not only will this subwoofer slay the lows, it is versatile enough to also play higher frequencies with authority.
The ZXI subline is a great high excursion line of subwoofers that both handle great power and give you smooth clean bass while playing ultra low frequencies but also shine in the higher bass range as well. These subs work great in both sealed and ported boxes giving you many options for placement in any vehicle.
This 6.5 inch model comes dual 4 ohm and comes with a 1.5 inch voice coil that handles 300w RMS and 600w max power. The large foam surround and pressed paper cone works greatly together to deliver smooth crisp bass that can be heard strongly throughout the vehicle giving you an amazing bass experience.
Highlights
- Large foam surround giving great high Xmax and bass precision while keeping great cone control when the subwoofer is close to maximum power.
- Great power handling of 300w RMS and 600w max through a high strength 1.5 inch aluminum voice coil.
- Very strong stamped basket with show quality DS18 logos on the frame, magnet boot, magnet, and dust cap.
- Designed to give crisp and clear bass in any vehicle and can be used in sealed and ported boxes.
Key Features
- 6.5 inch High Excursion Subwoofer
- Impedance: 4+4 OHMS
- Max Power Handling: 600 watts
- RMS Power Handling: 300 watts
- Frequency Response: 35Hz-1.8KHz
- Voice Coil Diameter: 1.5"
- Voice Coil Material: CCAW
- Sensitivity: 87 dB
- Magnet Weight: 80 oz
- Magnet Material: Ferrite
- Mounting Depth: 4.41"
- Xmax: 18mm one way
Great for
- Car Audio
- Motorcycles
- Home Studios
- Hi-Fi Installation
- DIY Projects
Technical Details
| SPECIFICATIONS | |
| Nominal Diameter | 6.5" / 165.1mm |
| Nominal Impedance | 4 + 4 ohms |
| RMS Power Handling | 300w |
| MAX Power Handling | 600w |
| Sensitivity (1w/1m) | 87dB |
| Frequency Response | 35Hz-1.8KHz |
| Recommended Lo Pass Crossover | 90Hz |
| MOTOR | |
| Voice Coil Diameter | 1.5" / 38.6mm |
| Voice Coil Former Material | Black Aluminum |
| Winding Material | CCAW |
| Cone Material | Non-Pressed Paper |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket Material | Aluminum |
| Basket Color/Finish | Black Sandblasted |
| Magnet Material | Ferrite |
| Magnet Weight | 80 Oz (4 x 20 oz) |
| Displacement Volume | 0.63L / 0.022ft3 |

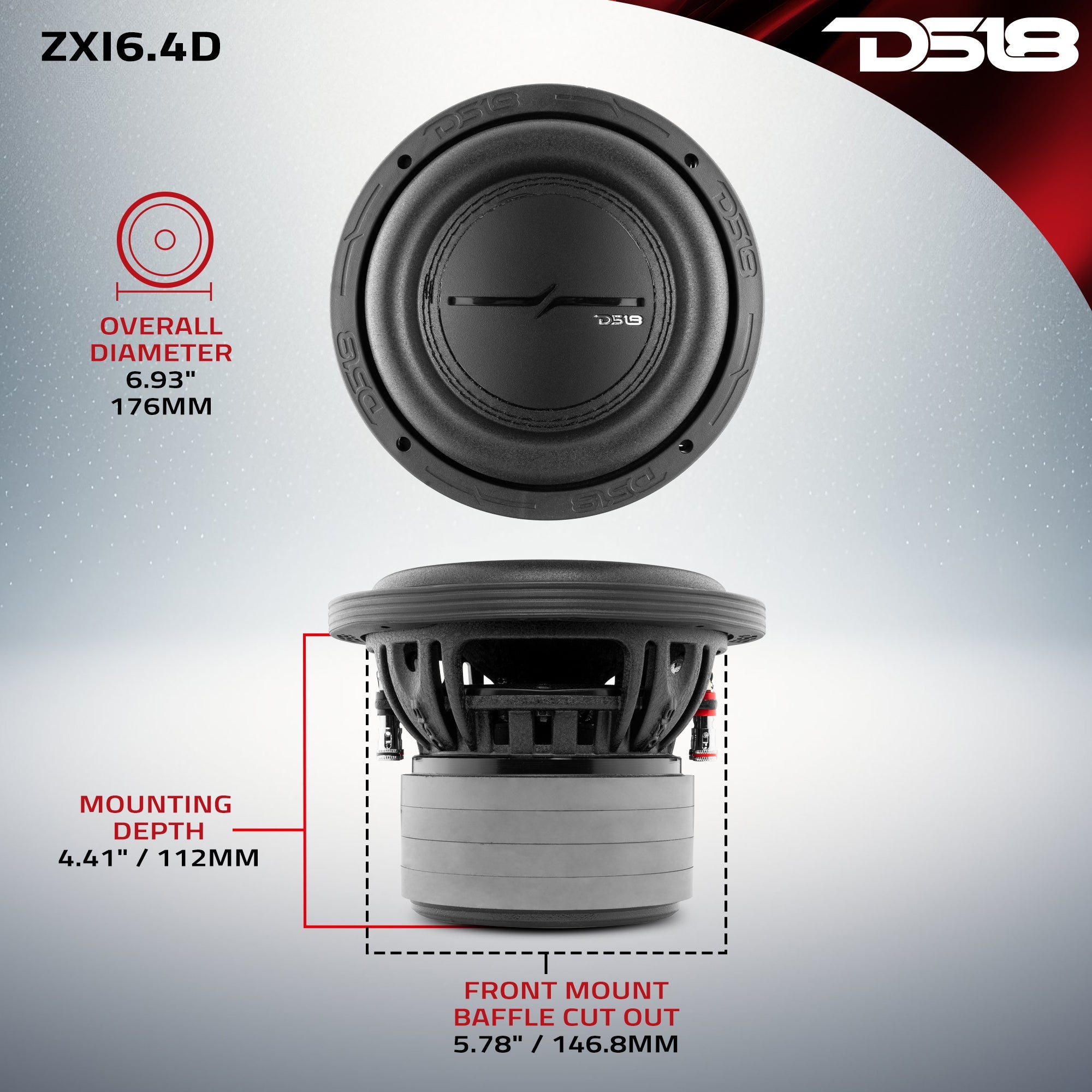

| MEASUREMENT | |
| Overall Diameter | 6.93" / 176mm |
| Overall Depth | 5.33" / 135.5mm |
| Front Mount Baffle Cutout | 5.78" / 146.8mm |
| Mounting Depth | 4.41" / 112mm |
| Motor Diameter | 4.72" / 120mm |
| Shipping | This item ships to |
| Delivery | Estimated between and . Will usually ship within 1 business day. |
Description
DS18 ZXI6.4D ZXI High Excursion 6.5" Car Audio Subwoofer 600W Watts 4-Ohm DVC Quad Stacked Magnets
Do you want more excursion, more thumping power, and to shake everyone's mirrors around you?
DS18 has the perfect subwoofer to satisfy all your bass head needs in the newly designed ZXI6.4D high excursion subwoofer. This monster mini sub packs a whopping 1.5 inch coil made to withstand high amounts of power with the utmost efficiency while producing thunderous distortion free bass.
This sub has a much lower than normal FS so it can be used in larger boxes with lower than normal tuning. Not only will this subwoofer slay the lows, it is versatile enough to also play higher frequencies with authority.
The ZXI subline is a great high excursion line of subwoofers that both handle great power and give you smooth clean bass while playing ultra low frequencies but also shine in the higher bass range as well. These subs work great in both sealed and ported boxes giving you many options for placement in any vehicle.
This 6.5 inch model comes dual 4 ohm and comes with a 1.5 inch voice coil that handles 300w RMS and 600w max power. The large foam surround and pressed paper cone works greatly together to deliver smooth crisp bass that can be heard strongly throughout the vehicle giving you an amazing bass experience.
Highlights
- Large foam surround giving great high Xmax and bass precision while keeping great cone control when the subwoofer is close to maximum power.
- Great power handling of 300w RMS and 600w max through a high strength 1.5 inch aluminum voice coil.
- Very strong stamped basket with show quality DS18 logos on the frame, magnet boot, magnet, and dust cap.
- Designed to give crisp and clear bass in any vehicle and can be used in sealed and ported boxes.
Key Features
- 6.5 inch High Excursion Subwoofer
- Impedance: 4+4 OHMS
- Max Power Handling: 600 watts
- RMS Power Handling: 300 watts
- Frequency Response: 35Hz-1.8KHz
- Voice Coil Diameter: 1.5"
- Voice Coil Material: CCAW
- Sensitivity: 87 dB
- Magnet Weight: 80 oz
- Magnet Material: Ferrite
- Mounting Depth: 4.41"
- Xmax: 18mm one way
Great for
- Car Audio
- Motorcycles
- Home Studios
- Hi-Fi Installation
- DIY Projects
Technical Details
| SPECIFICATIONS | |
| Nominal Diameter | 6.5" / 165.1mm |
| Nominal Impedance | 4 + 4 ohms |
| RMS Power Handling | 300w |
| MAX Power Handling | 600w |
| Sensitivity (1w/1m) | 87dB |
| Frequency Response | 35Hz-1.8KHz |
| Recommended Lo Pass Crossover | 90Hz |
| MOTOR | |
| Voice Coil Diameter | 1.5" / 38.6mm |
| Voice Coil Former Material | Black Aluminum |
| Winding Material | CCAW |
| Cone Material | Non-Pressed Paper |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket Material | Aluminum |
| Basket Color/Finish | Black Sandblasted |
| Magnet Material | Ferrite |
| Magnet Weight | 80 Oz (4 x 20 oz) |
| Displacement Volume | 0.63L / 0.022ft3 |
| MEASUREMENT | |
| Overall Diameter | 6.93" / 176mm |
| Overall Depth | 5.33" / 135.5mm |
| Front Mount Baffle Cutout | 5.78" / 146.8mm |
| Mounting Depth | 4.41" / 112mm |
| Motor Diameter | 4.72" / 120mm |
