DS18 PRO-TWX4 4.5" Super Bullet Tweeter 560 Watts 1.75" Titanium 4-Ohm Vc
Engineered and Designed in the US, the DS18 PRO Tweeters are the top of the line in the Pro Audio/Voceteo market. These bad boys deliver so much power that you'd think with one tweeter your whole sound system is ready to deploy for a major concert. Simply put, there are no tweeters that can compare to the sophistication, beauty, and precision of these tweeters especially in the Pro Audio/Voceteo World.
Thanks to the demands of our customers, after months of relentless tests and experiments, our team of audio-experts perfected the PRO TWX line. We are ecstatic to share with you the product of hard-work and "non-stop innovating attitude." We are sure that you will love your new PRO Tweeters as much as we do.
Highlights
- Award winning DS18 super tweeter design that has been seen in countless shows and competitions in some of the loudest vehicles in the world.
- High powered super tweeter made to emphasize extreme high notes with amazing precision and clarity.
- Easily disassembled so you can change your voice coil on the go in minutes.
- With a massive 1.75 inch 4 ohms voice coil, these monster tweeters have a Peak wattage of 520w for insane highs at extreme volumes.
Technical Details
| SPECIFICATIONS | ||
| Nominal Diameter | 4.53” / 115mm | |
| Nominal Impedance | 4 Ohms | |
| AES Power Handling | 140W | |
| Program Power Handling | 280W | |
| Peak Power Handling | 560W | |
| Sensitivity (1w/1m) | 108 dB | |
| Frequency Response | 1.5KHz-20KHz | |
| Recommended Hi Pass Crossover | 2KHz | |
| Pair or Single | Single | |
| MOTOR | ||
| Voice Coil Diameter | 1.75” / 44.4mm | |
| Voice Coil Former Material | Kapton | |
| Winding Material | CCAW | |
| Diaphragm Material | Titanium | |
| Magnet Material | Ferrite | |
| Magnet Weight | 16 oz | |
| Body Material | Aluminum | |
| Bullet Material | Aluminum | |

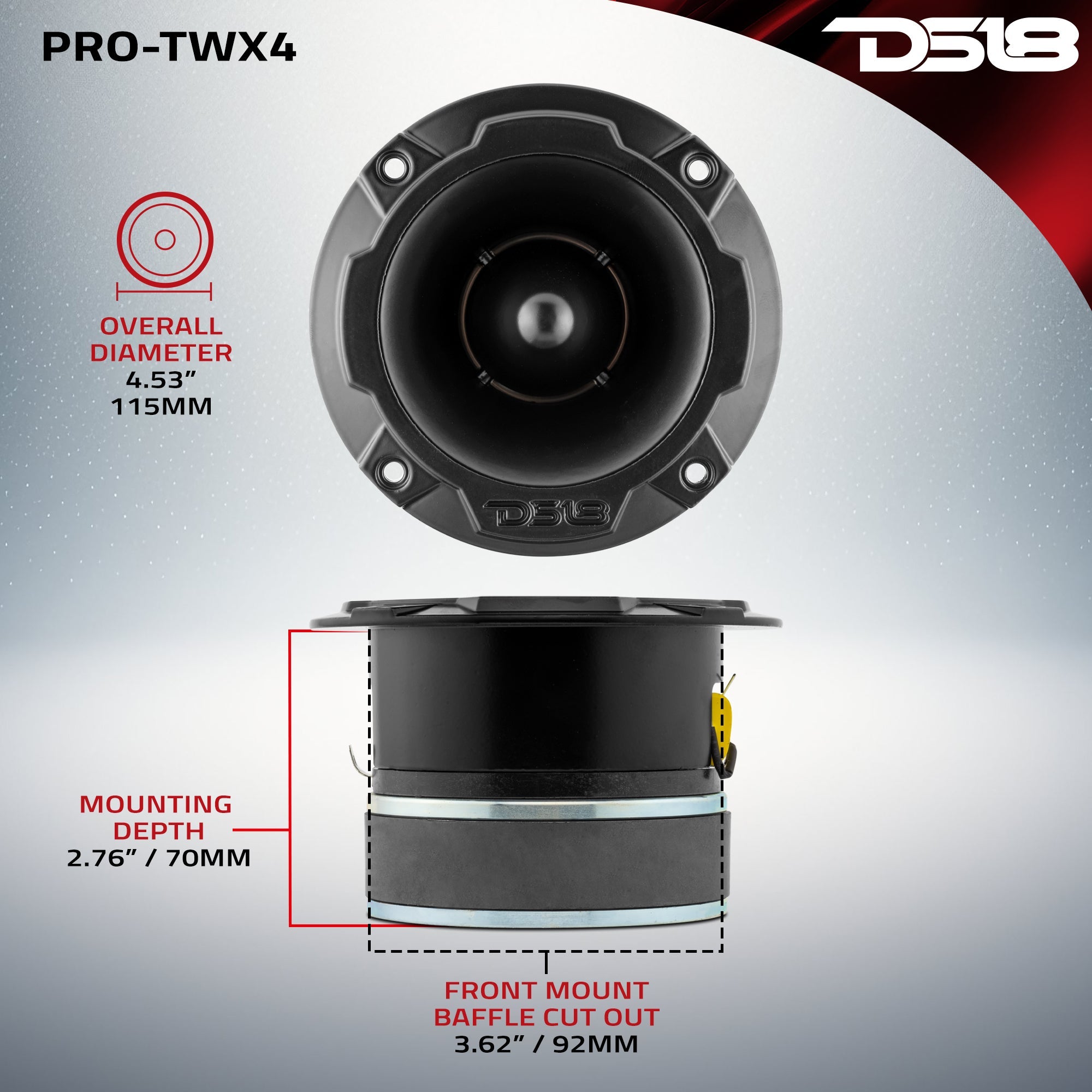

| MEASUREMENTS | ||
| Overall Diameter | 4.53” / 115mm | |
| Overall Depth | 3.01“ / 76.5mm | |
| Front Mount Baffle Cutout | 3.62” / 92mm | |
| Mounting Depth | 2.76” / 70mm | |
| Motor Diameter | 3.56” / 90mm | |
| Shipping | This item ships to |
| Delivery | Estimated between and . Will usually ship within 1 business day. |
Description
DS18 PRO-TWX4 4.5" Super Bullet Tweeter 560 Watts 1.75" Titanium 4-Ohm Vc
Engineered and Designed in the US, the DS18 PRO Tweeters are the top of the line in the Pro Audio/Voceteo market. These bad boys deliver so much power that you'd think with one tweeter your whole sound system is ready to deploy for a major concert. Simply put, there are no tweeters that can compare to the sophistication, beauty, and precision of these tweeters especially in the Pro Audio/Voceteo World.
Thanks to the demands of our customers, after months of relentless tests and experiments, our team of audio-experts perfected the PRO TWX line. We are ecstatic to share with you the product of hard-work and "non-stop innovating attitude." We are sure that you will love your new PRO Tweeters as much as we do.
Highlights
- Award winning DS18 super tweeter design that has been seen in countless shows and competitions in some of the loudest vehicles in the world.
- High powered super tweeter made to emphasize extreme high notes with amazing precision and clarity.
- Easily disassembled so you can change your voice coil on the go in minutes.
- With a massive 1.75 inch 4 ohms voice coil, these monster tweeters have a Peak wattage of 520w for insane highs at extreme volumes.
Technical Details
| SPECIFICATIONS | ||
| Nominal Diameter | 4.53” / 115mm | |
| Nominal Impedance | 4 Ohms | |
| AES Power Handling | 140W | |
| Program Power Handling | 280W | |
| Peak Power Handling | 560W | |
| Sensitivity (1w/1m) | 108 dB | |
| Frequency Response | 1.5KHz-20KHz | |
| Recommended Hi Pass Crossover | 2KHz | |
| Pair or Single | Single | |
| MOTOR | ||
| Voice Coil Diameter | 1.75” / 44.4mm | |
| Voice Coil Former Material | Kapton | |
| Winding Material | CCAW | |
| Diaphragm Material | Titanium | |
| Magnet Material | Ferrite | |
| Magnet Weight | 16 oz | |
| Body Material | Aluminum | |
| Bullet Material | Aluminum | |
| MEASUREMENTS | ||
| Overall Diameter | 4.53” / 115mm | |
| Overall Depth | 3.01“ / 76.5mm | |
| Front Mount Baffle Cutout | 3.62” / 92mm | |
| Mounting Depth | 2.76” / 70mm | |
| Motor Diameter | 3.56” / 90mm | |
